PLIT-080-158C-68-KP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Standard Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : 5/8-11 UNC (15.88mm)
    • Overall Length (A) 68.0 mm
      (Equiv. 2.677 in.)
    • Initial End Force 1.5 N
    • Final End Force 3.6 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Nut Height (F) 10.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (K) 19.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-506
      • KBP506
      View full details

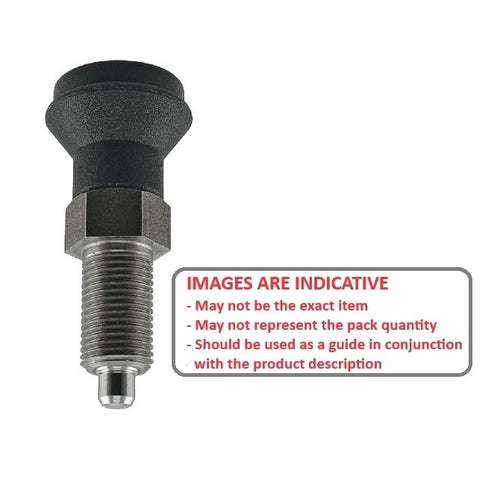

      PLIT-080-158C-68-KP-S3DiagramPLIT-080-158C-68-KP-S3Image
