LYP-Q1-079-089-CZ - Datasheet
MBA
Category Information

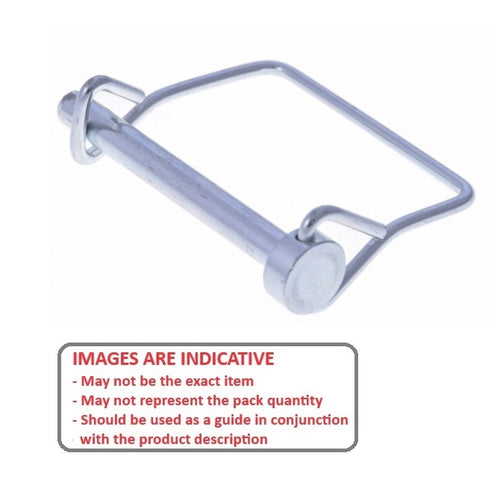

Pins - Wire Lock Lynch - Single Wire - Square Carbon SteelSquare Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

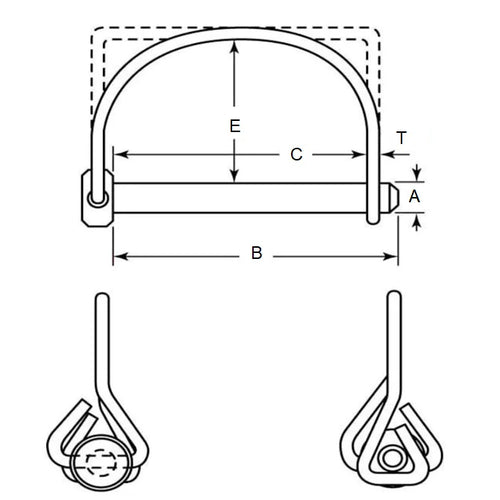

- Pin Diameter (A)
:
7.94
mm
- 0.051 / - 0.178
(Equiv. 0.313 in.) - Grip Length (C)
88.90
mm
+ 0.00 / - 6.35
(Equiv. 3.5 in.) - Wire Thickness (T)
3.0
mm
(Equiv. 0.118 in.) - Clearance To Wire (E) 44.5 mm
- Pin Length (B) 95.3 mm
- Weight Per Piece 57 g
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNIP-312-3500S
- SNIP3123500S
