BLP-079-0286-CZ - Datasheet
MBA
Category Information

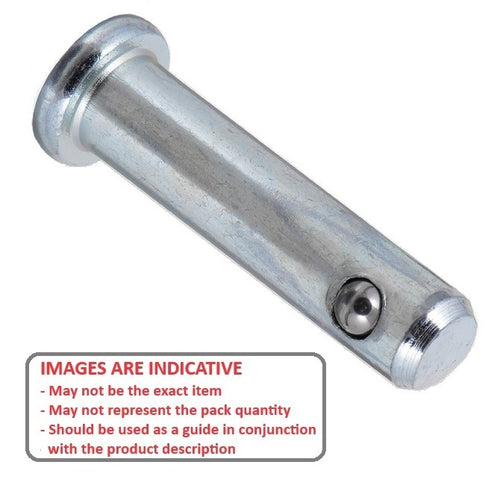

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Self locking and reusable with a spring loaded ball lock
- Zinc plated low carbon steel with stainless steel ball

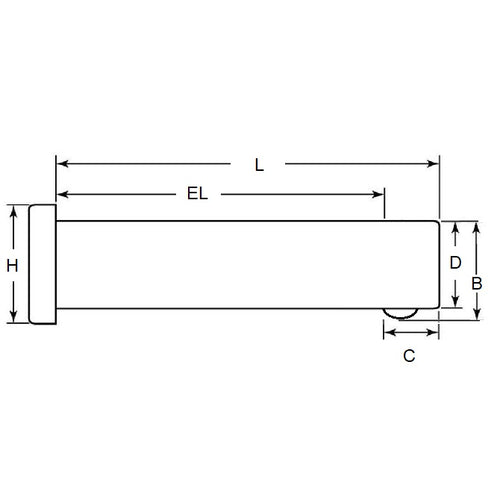

Product Data
- Nominal Pin Diameter (A)
:
7.94
mm
- 0.05 / - 0.18
(Equiv. 0.313 in.) - Grip Length (EL)
28.58
mm
+ 0.51 / - 0.00
(Equiv. 1.125 in.) - Nom. Length (L)
38.10
mm
+ 0.51 / - 0.00
(Equiv. 1.5 in.) - Locking Ball to End (C) 9.53 mm
- Open Ball Distance (B) 0.64 to 0.76 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90156A406
- NoCor CLPCZ-0312-1500
- CLPCZ03121500
- BLP0790286Z
