CS-0794-1016-09-M-C - Datasheet

MBA

Category Information

Springs - Compression - Music Wire

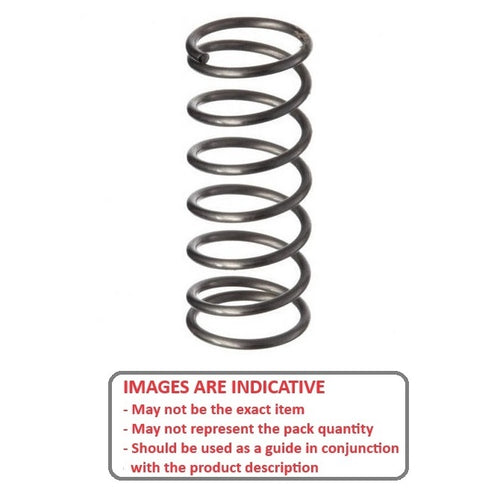

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 7.94 mm +/- 0.203
    (Equiv. 0.313 in.)
  • Free Length (L0) 101.6 mm +/- 2.54
    (Equiv. 4 in.)
  • Wire Diameter (d) 0.90 mm +/- 0.015
    (Equiv. 0.035 in.)
  • Rate (P/f) 0.6 N/mm
  • Solid Height (Sh) 27.690 mm
  • Approx. ID 6.1 mm
  • End Type Closed
  • Material Carbon Spring Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • ASI JWC27
