BLP-079-0508-BT-S4 - Datasheet
MBA
Category Information

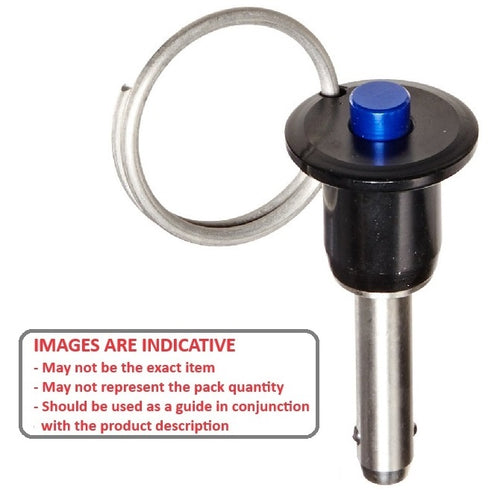

Pins - Ball Lock - Button Handle - Commercial 304 StainlessCommercial 304 Stainless Button Handle Ball Lock Pins. Quick release. Commercial pins provide strong locking and are perfect for less demanding applications where fastening and locating are needed.
- An expanded range may be available on special order. Please enquire.
- Economical. Positive lock detent pins.
- Aluminium handles.
- 360 Brass Buttons
- 304 Stainless Steel Shank and balls
- Use industrial grade T handled pins when higher double shear strength is required

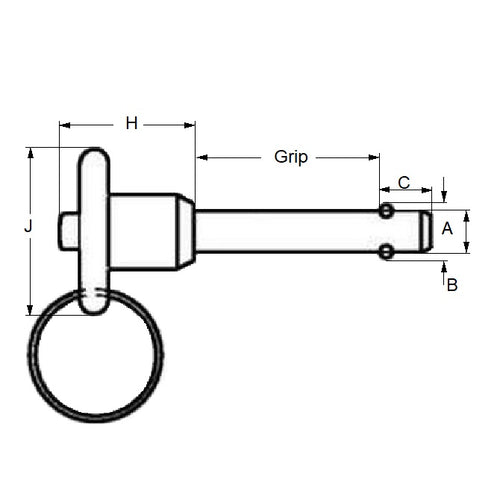

Product Data
- Nominal Diameter
:
7.94
mm
(Equiv. 0.313 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 304 Stainless Steel Shank / Aluminium Handle
- Locking Ball to End (C) 8.38 mm
- Open Ball Distance (B) 9.53 mm
- Max. Handle Height (H) 23.62 mm
- Max. Handle Diameter (J) 28.83 mm
- Min. Handle Diameter (J) 20.57 mm
- Pull Out Strength 178.00 Kg
- Calc. Double Shear Strength 1560 Kg
- Material Stainless Steel 304 with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- 90985A213
- CPB053
- CPB-053
