BLP-079-0381-THR-S3 - Datasheet
MBA
Category Information

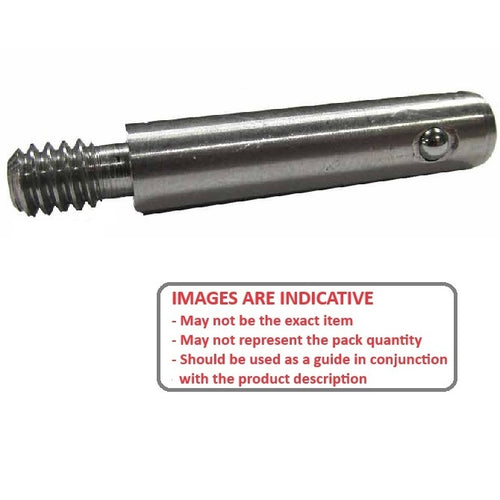

Pins - Ball Lock - Threaded End Stainless SteelThreaded End Stainless Steel Ball Lock Pins. One end threaded so you can attach your own handle or knob. 303 Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

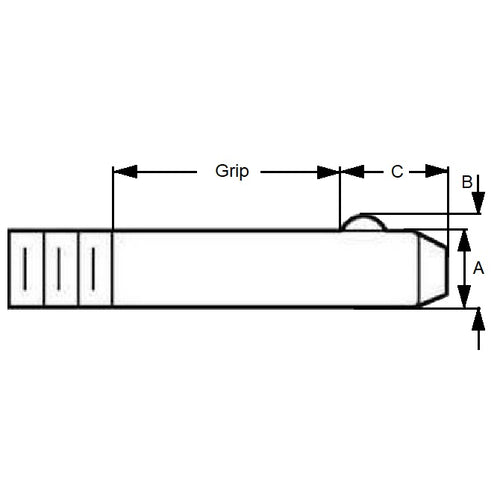

- Nominal Diameter (A)
:
7.94
mm
(Equiv. 0.313 in.) - Grip Length (B)
38.10
mm
(Equiv. 1.5 in.) - Pin Material Grade 303 Stainless Steel
- Thread Size 5/16-18 UNC (7.94mm)
- Thread Length 9.53 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- FPU60
- FPU-60
