BLP-079-0203-K1-S3 - Datasheet
MBA
Category Information

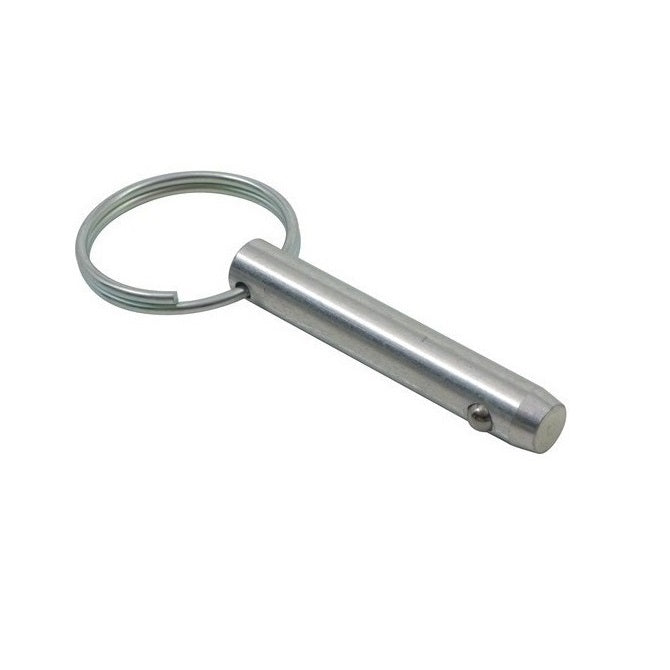

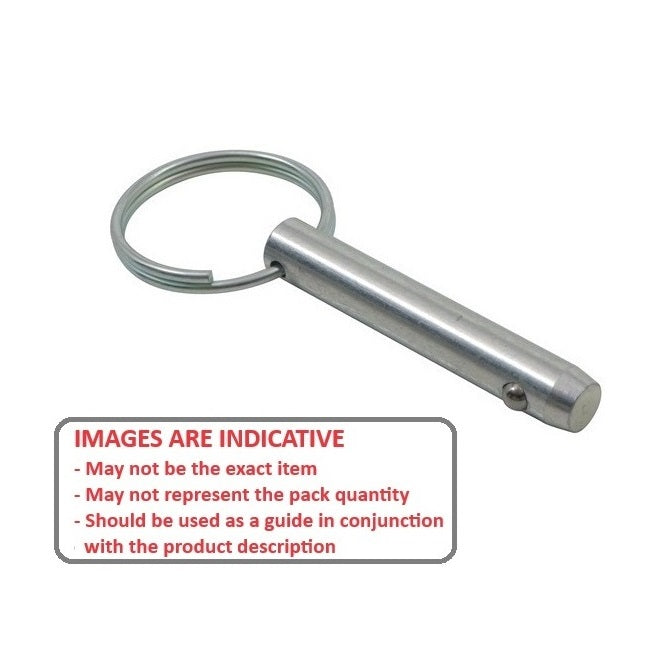

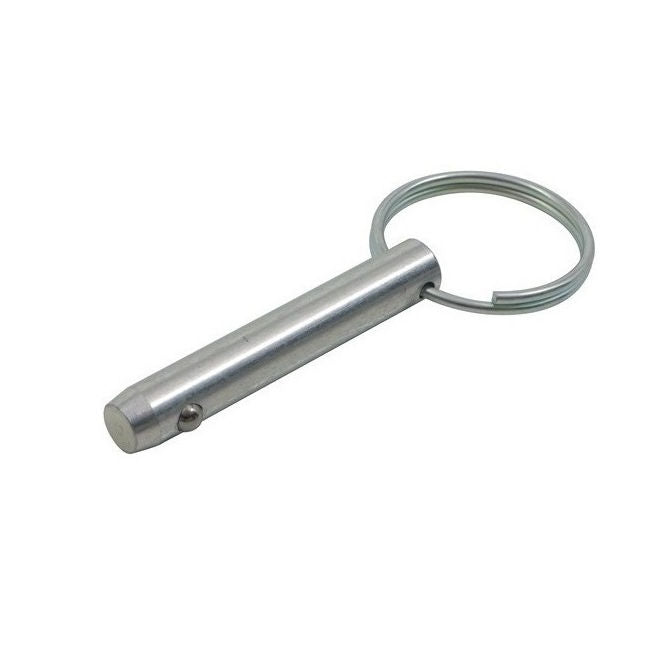

Pins - Ball Lock - Keyring Style - Single Ball - 300 Grade Stainless Steel300 Grade Stainless Steel Single Ball Keyring Style Ball Lock Pins. Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Handles
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

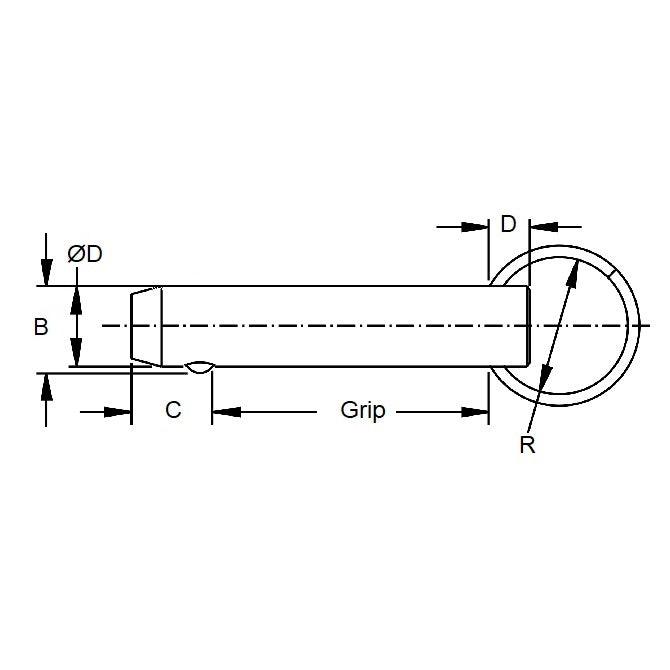

- Nominal Diameter
:
7.94
mm
(Equiv. 0.313 in.) - Grip Length (B)
20.32
mm
(Equiv. 0.8 in.) - Pin Material Grade 303 Stainless Steel
- Locking Ball to End (C ) 9.53 mm
- Open Ball Distance (B) 9.09 mm
- Ring Diameter (R ) 25.40 mm
- Depth of Ring in Pin (D) 6.35 mm
- Detent Style 1 Ball Plain Pin No Shoulder
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 98404A248
- FPSC5-08R
- FPSC508R
