BLP-079-0127-T-S4 - Datasheet
MBA
Category Information

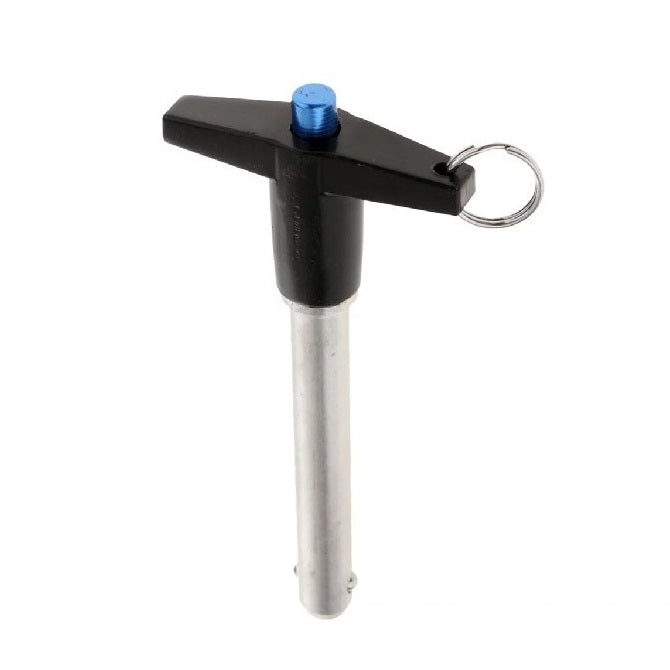

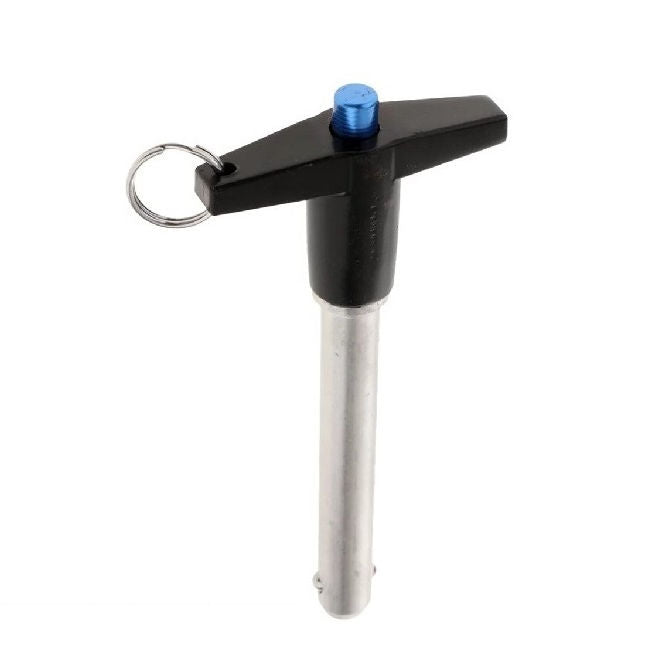

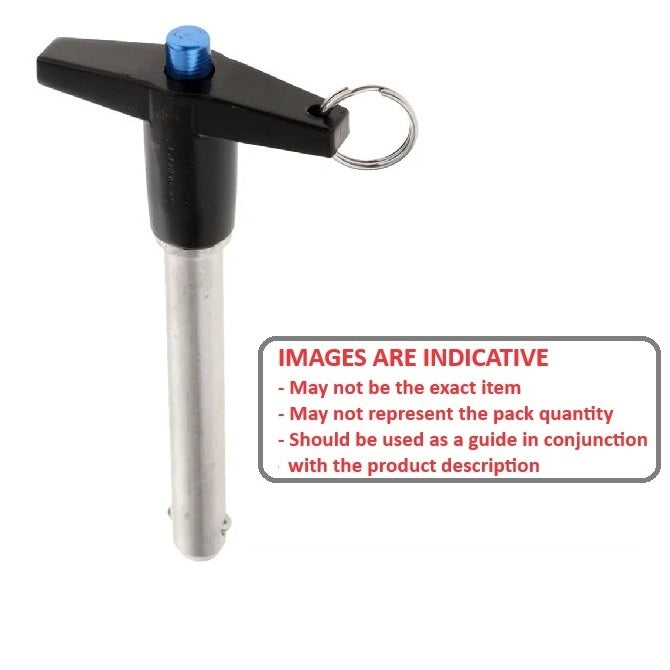

Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless SteelCommercial 304 Stainless Steel Tee Handle No Shoulder Ball Lock Pins. Quick release. Stainless steel commercial pins provide strong locking and are perfect for less demanding applications where fastening and locating are needed. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Economical. Positive lock detent pins.
- Aluminium handles.
- 304 Stainless Steel Shank
- 360 Brass Button
- Use industrial grade T handled pins when higher double shear strength is required
Product Data

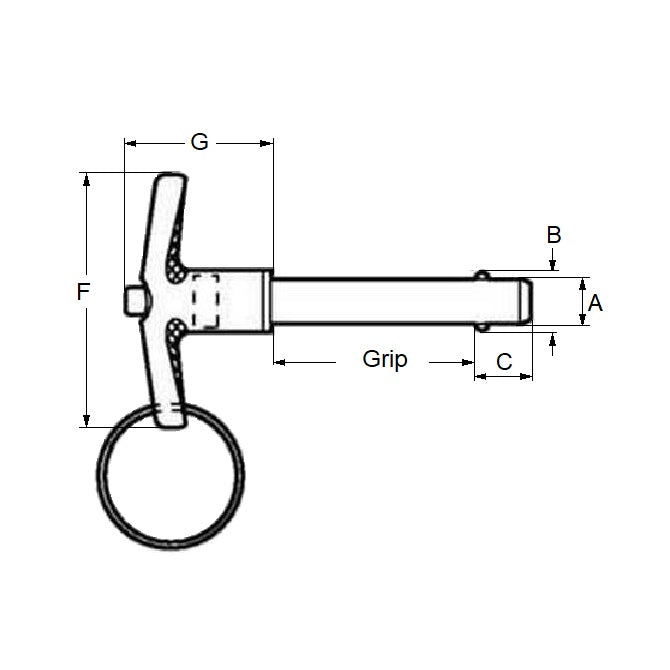

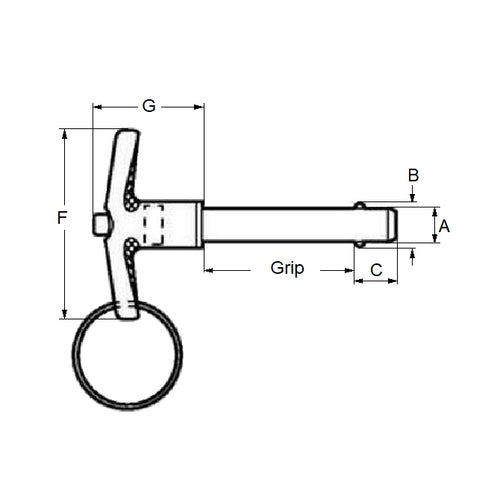

- Nominal Diameter
:
7.94
mm
(Equiv. 0.313 in.) - Grip Length (B)
12.70
mm
(Equiv. 0.5 in.) - Pin Material Grade 304 Stainless Steel
- Locking Ball to End (C) 8.38 mm
- Open Ball Distance (B) 9.53 mm
- Handle Diameter (F) 46.10 mm
- Handle Height (G) 32.26 mm
- Pull Out Strength 178.00 Kg
- Calc. Double Shear Strength 1560 Kg
- Pin Diameter (A) 7.90 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor PLT-0312-0500
- PLT03120500
- CPT-0505
- CPT0505
