CNG-00794-11-420-2 - Datasheet
MBA
Category Information

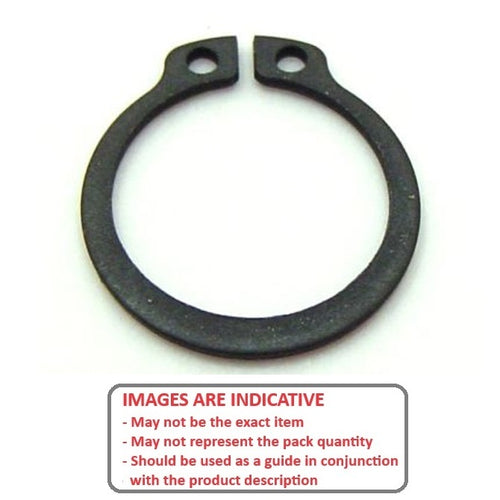

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

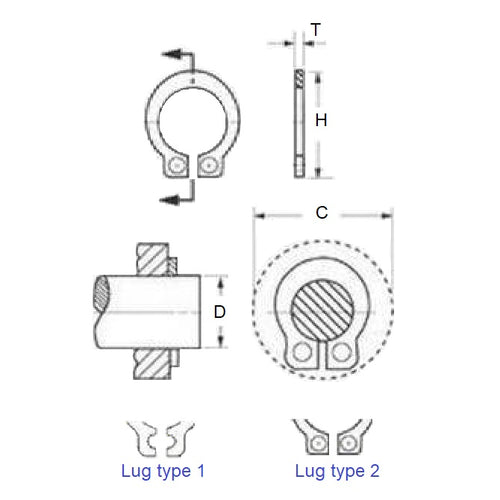

Product Data
- Shaft Diameter (Ds)
:
7.94
mm
+/- 0.08
(Equiv. 0.313 in.) - Clip Thickness (T)
1.07
mm
(Equiv. 0.042 in.) - Approx. Loose Circlip ID (A) 7.70 mm
- Assemb. Clearance on Shaft (C) 17.27
- Allowable Load 102 N
- Lug Type 2 (Closed) mm
- Tool PRS-E070-X
- Material Stainless Steel AISI 420C
Product Compliance and Data
Additional Resources
Cross References
- SHF-007.94-SS
- SHF00794SS
