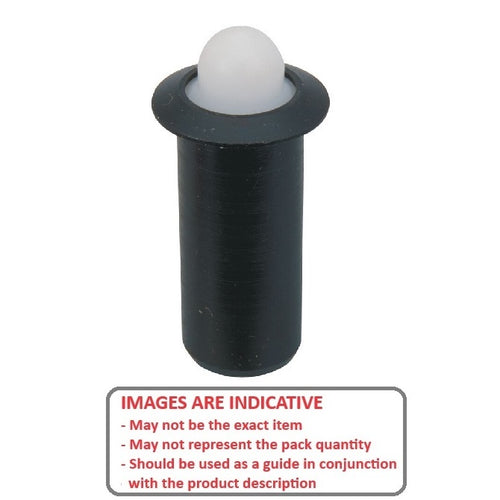

PLSP-079-163-AC-044 - Datasheet

MBA

Product Data

• Body Diameter (A) : 7.93 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.312 in.)
• Body Length (B) 16.3 mm
  (Equiv. 0.642 in.)
• Initial Pressure (F1) 17.8 N
• Final Pressure (F2) 44.5 N
• Tip Diameter (D1) 4.7 mm
• Tip Length (C) 3.8 mm
• Drive Push Fit
• Material Steel Body with Acetal

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
