TPM-0600-06000-EE - Datasheet
MBA
Category Information

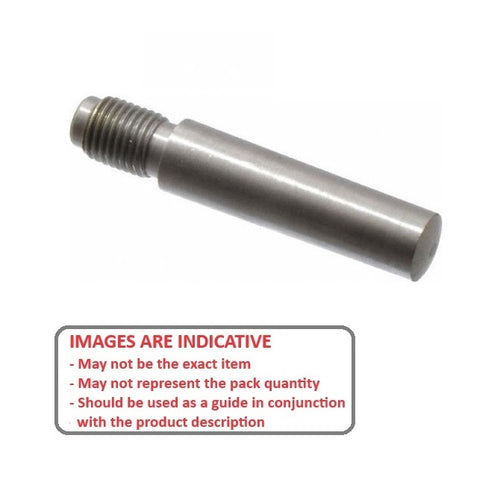

Pins - Taper Metric - Extractable - External ThreadExternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded externally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7977.
Product Data

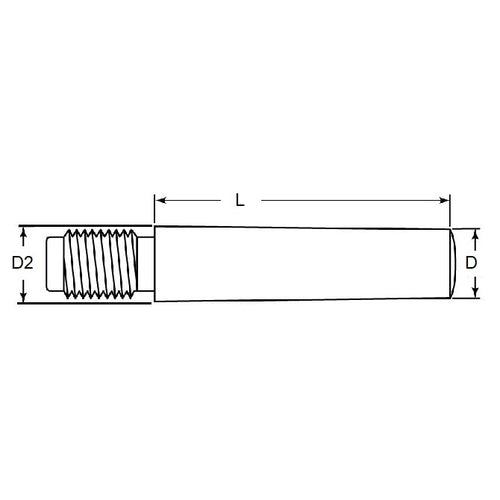

- Nom. Small End Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Overall Length (L)
60.00
mm
(Equiv. 2.362 in.) - Nom. Large End Diameter (D2)
7.20
mm
(Equiv. 0.283 in.) - Thread Size M6
- Standard DIN7977
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor TPTME-060-060
- TPTME060060
