CCE-00600-S15 - Datasheet
MBA
Category Information

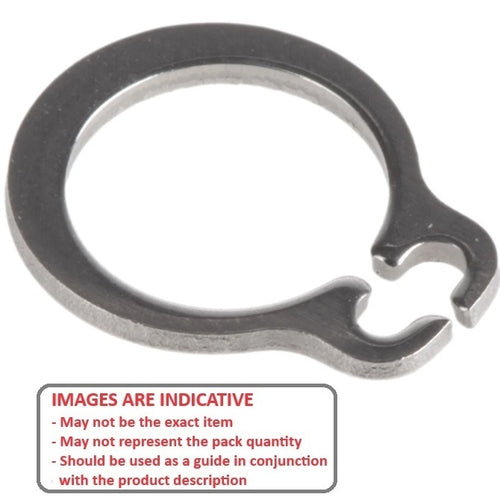

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
6.00
mm
(Equiv. 0.236 in.) - Clip Thickness (T)
0.70
mm
+ 0.00 / - 0.04
(Equiv. 0.028 in.) - Groove Dia. (Dg)
5.70
mm
+ 0.00 / - 0.05
(Equiv. 0.224 in.) - Approx. Loose Circlip ID (A) 5.60 mm
- Groove Width (W) 0.80 mm
- Clearance on Shaft (C1) 11.70 mm
- Clearance in Groove (C1) 11.10 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-006-SS
- 90667A110
- Seeger A-006-SS
- Seeger A6K500-BLS
- Seeger A6X0.7-411
- Seeger A6X0.7SS
- Bossard BN818-006-SS
- Waldes D1400-006-SS
- NoCor DSH-006-SS
- Rotor Clip DSH-006-SS
- A6X07411
- DSH006SS
- 14000060KSF
- 1400-0060KSF
- D1400006SS
- D1400-0060KSF
- D14000060KSF
- A6K500BLS
- A006SS
- 471006SS
- BN818006SS
