Miniature Bearings Australia
CCE-00600-C - Datasheet
MBA
Category Information

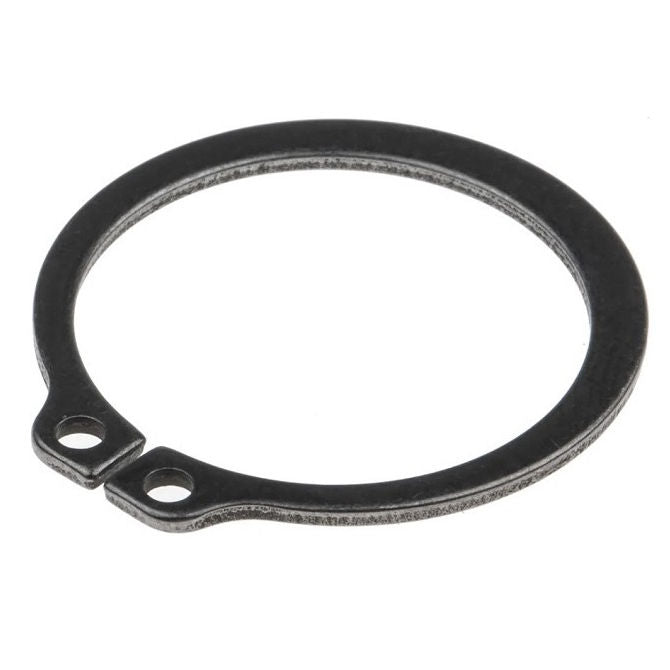

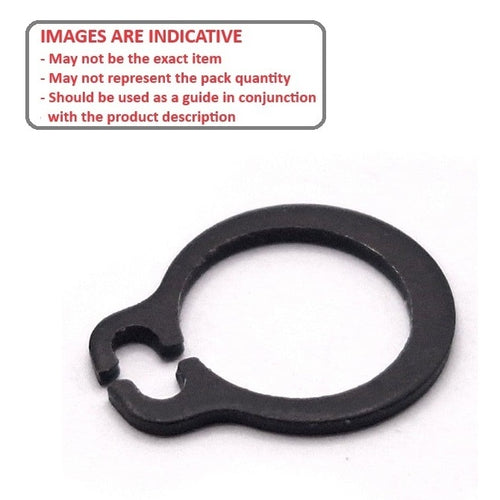

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
6.00
mm
(Equiv. 0.236 in.) - Clip Thickness (T)
0.70
mm
+ 0.00 / - 0.04
(Equiv. 0.028 in.) - Groove Dia. (Dg)
5.70
mm
+ 0.00 / - 0.05
(Equiv. 0.224 in.) - Approx. Loose Circlip ID (A) 5.60 mm
- Groove Width (W) 0.80 mm
- Clearance on Shaft (C1) 11.70 mm
- Clearance in Groove (C1) 11.10 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-006
- 98541A114
- Seeger A-006
- Seeger A6-BLS
- Seeger A6X0.7
- Bossard BN818-006
- Waldes D1400-006
- NoCor DSH-006
- Rotor Clip DSH-006
- Small Parts MER-06
- MER06
- MD0471MQB006
- DSH006
- CCE00600C
- 14000060
- 1400-0060
- D14000060
- D1400-0060
- A006
- 471006
- A6BLS
- BN818006
