PLIT-060-120-150-52-LKPN-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut

With Locking Slot and Nut Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M12x1.5 (Fine)
    • Overall Length (A) 51.7 mm
      (Equiv. 2.035 in.)
    • Initial End Force 2.7 N
    • Final End Force 6.4 N
    • Tip Diameter (C) 6.0 mm
    • Tip Length (D) 6.0 mm
    • Knob Diameter (J) 25.0 mm
    • Hex Size (K) 14.0 mm
    • Nut Size (L) 19.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-567
      • KBP567
      View full details

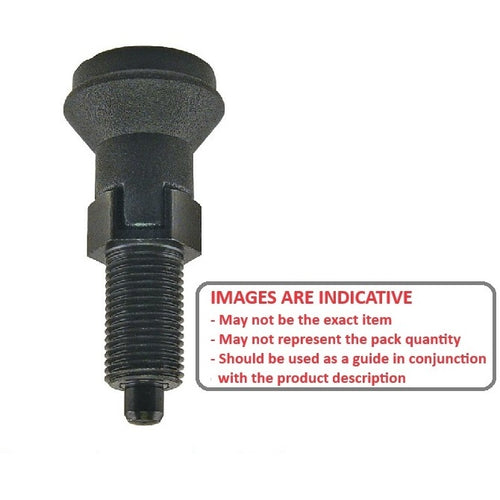

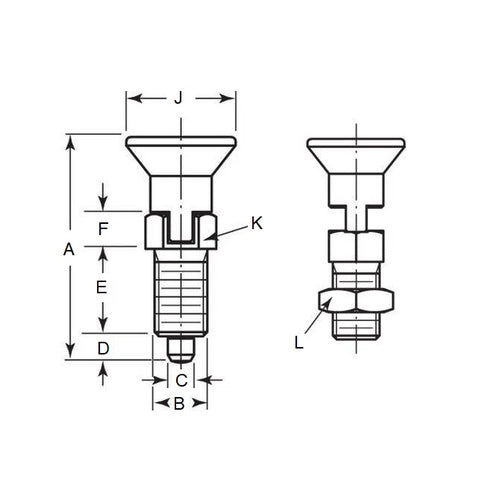

      PLIT-060-120-150-52-LKPN-CDiagramPLIT-060-120-150-52-LKPN-CImage
