PLIT-060-120-150-56-LKP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot

With Locking Slot Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M12x1.5 (Fine)
    • Overall Length (A) 56.0 mm
      (Equiv. 2.205 in.)
    • Initial End Force 0.6 N
    • Final End Force 1.4 N
    • Tip Diameter (C) 6.0 mm
    • Tip Length (D) 6.0 mm
    • Hex Height (F) 8.0 mm
    • Knob Diameter (J) 25.0 mm
    • Hex Size (K) 14.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP613
      • KBP-613
      View full details

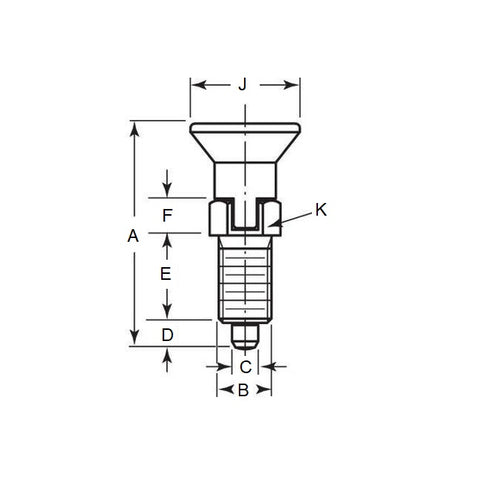

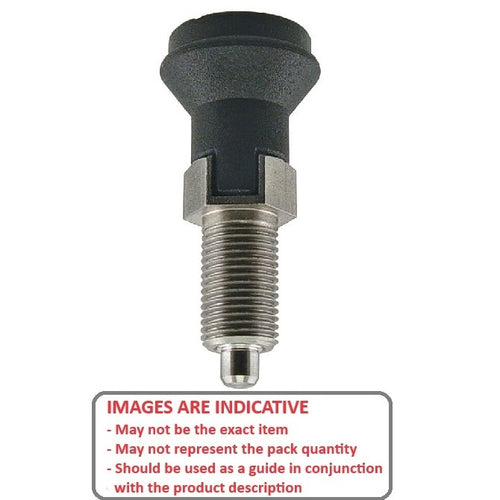

      PLIT-060-120-150-56-LKP-S3DiagramPLIT-060-120-150-56-LKP-S3Image
