PLIT-060-120-150-52-KP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Standard Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M12x1.5 (Fine)
    • Overall Length (A) 51.7 mm
      (Equiv. 2.035 in.)
    • Initial End Force 0.6 N
    • Final End Force 1.4 N
    • Tip Diameter (C) 6.0 mm
    • Tip Length (D) 6.0 mm
    • Nut Height (F) 8.0 mm
    • Knob Diameter (J) 25.0 mm
    • Hex Size (K) 14.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP519
      • KBP-519
      View full details

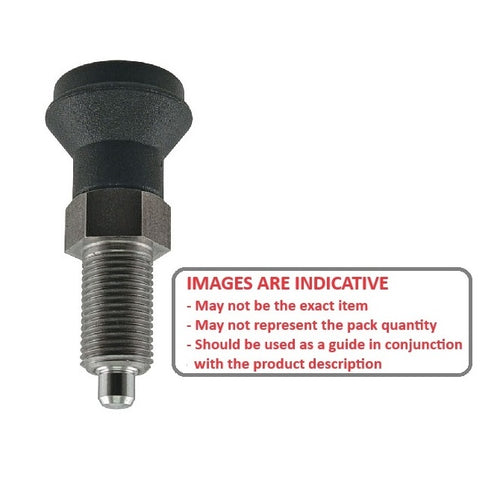

      PLIT-060-120-150-52-KP-S3DiagramPLIT-060-120-150-52-KP-S3Image
