PLIT-060-095C-10-G-S3 - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Stainless - Without Nut

Without Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : 3/8-16 UNC (9.53mm)
    • Thread Length (F) 20.0 mm
      (Equiv. 0.787 in.)
    • Initial End Force 0.6 N
    • Final End Force 0.8 N
    • Tip Diameter (A) 6.0 mm
    • Tip Length (E) 6.0 mm
    • H 14.3
    • Handle Length (G) 25.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-768
      • KBP768
      View full details

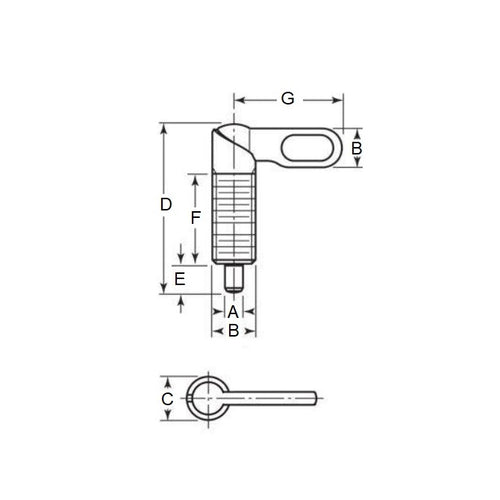

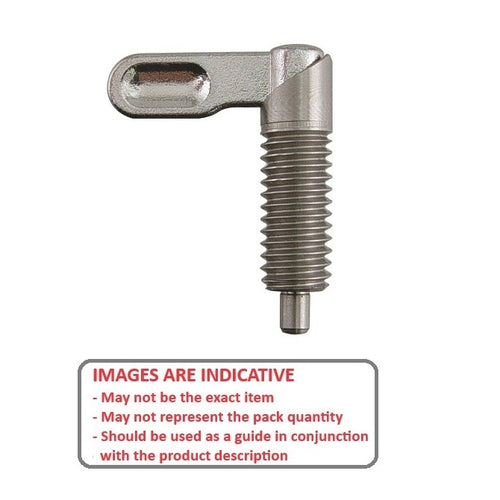

      PLIT-060-095C-10-G-S3DiagramPLIT-060-095C-10-G-S3Image
