CCI-06826-CZY - Datasheet
MBA
Category Information

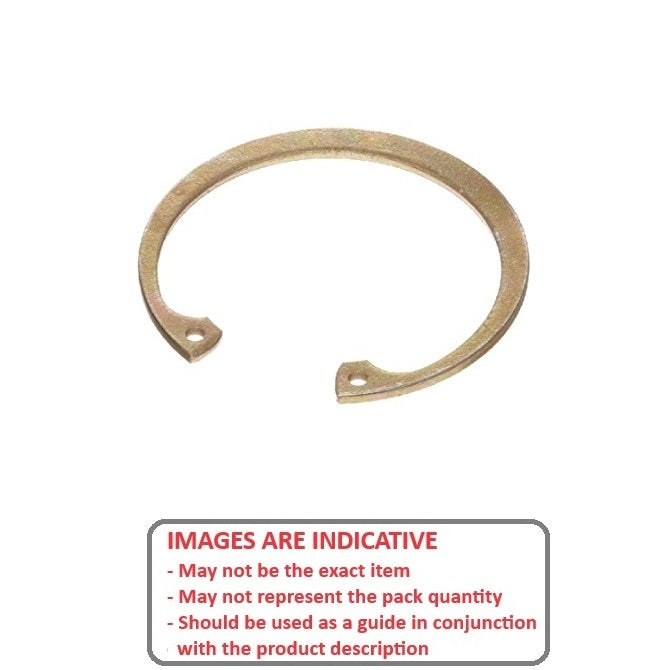

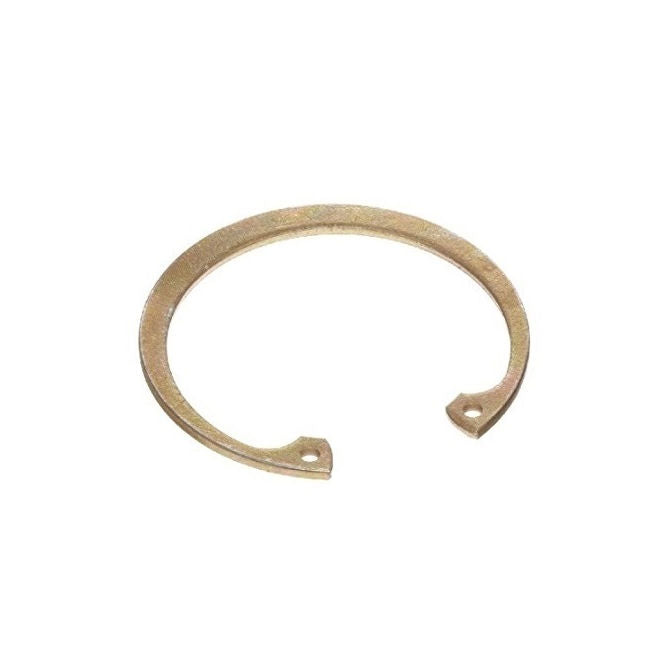

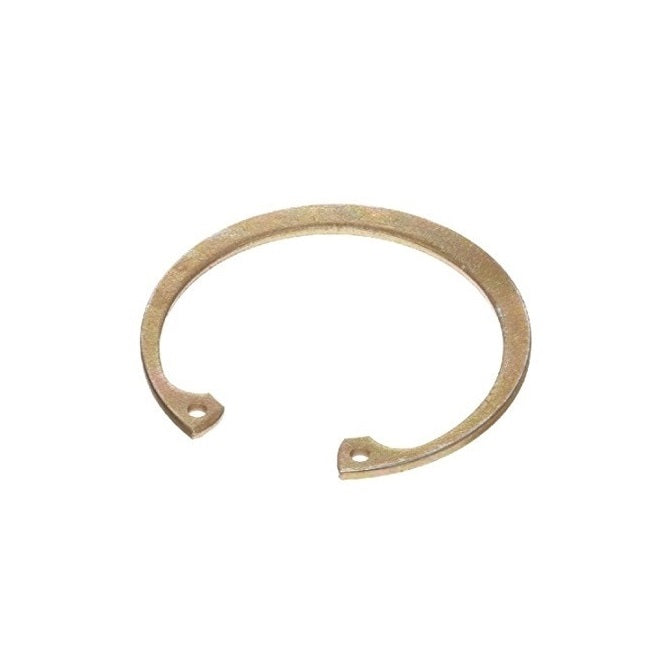

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
68.26
mm
(Equiv. 2.687 in.) - Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.) - Groove Dia. (Dg)
72.34
mm
+ 0.00 / - 0.07
(Equiv. 2.848 in.) - Approx. Loose Circlip OD (Dr) 75.69 mm + 1.02 / - 0.76
- Groove Width (W) 2.62 mm + 0.13 / - 0.00
- Min. Lug Diameter (h) 2.74 mm
- Min. Extension (n) 5.94
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98409A259
- NoCor HO-268-ZD
- HO268ZD
- N13000268AZD
- N1300-0268AZD
