YE-16RS - Datasheet

MBA

Category Information

Yoke Ends - Blank

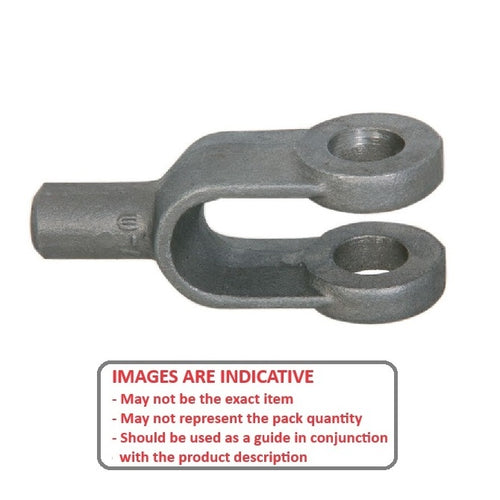

Blank Yoke Ends. Linkage connectors with blank ends - no hole.

  • A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
  • It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
  • Yoke ends require a clevis pin and cotter pin for secure attachment.
  • Drop forged steel machined to SAE standards
  • Also see clevis joints

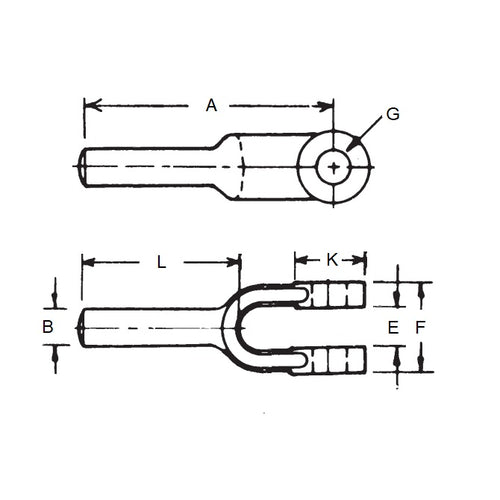

Product Data

  • Effective Length (A) : 63.500 mm
    (Equiv. 2.5 in.)
  • Hub Diameter (B) 12.700 mm
    (Equiv. 0.5 in.)
  • Gap (E) +/- 0.38 14.290 mm
    (Equiv. 0.563 in.)
  • Width (F) +/- 0.38 14.29 mm
  • Hole Size (G) +0.25 12.70 mm
  • Stud Height (L) 25 mm
  • Housing Diameter (K) 24 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6414K16
