CCE-06200-S15 - Datasheet
MBA
Category Information

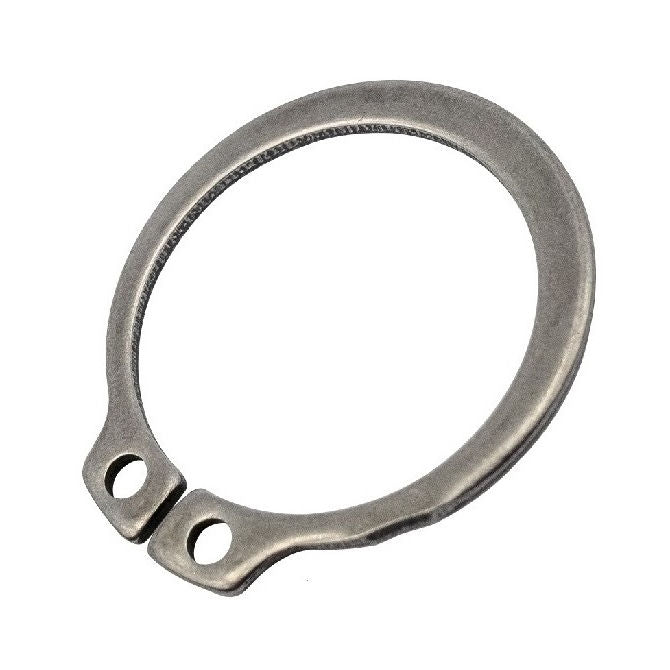

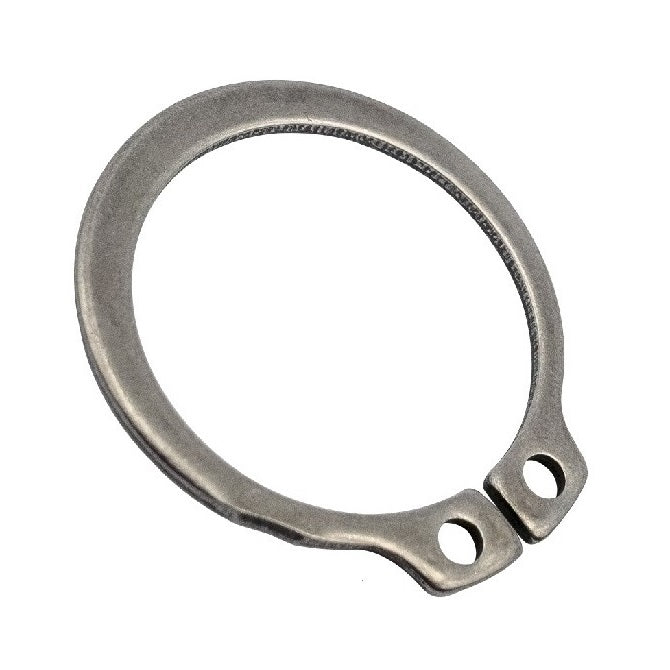

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
62.00
mm
(Equiv. 2.441 in.) - Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.30
(Equiv. 0.079 in.) - Groove Dia. (Dg)
58.70
mm
+ 0.00 / - 0.07
(Equiv. 2.311 in.) - Approx. Loose Circlip ID (A) 57.80 mm
- Groove Width (W) 2.15 mm
- Clearance on Shaft (C1) 74.00 mm
- Clearance in Groove (C1) 77.80 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 4.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-062-SS
- Seeger A-062-SS
- Seeger A62X2-411
- Seeger A62X2SS
- Bossard BN818-062-SS
- Waldes D1400-062-SS
- NoCor DSH-062-SS
- Rotor Clip DSH-062-SS
- DSH062SS
- 1400-0620KSF
- 14000620KSF
- D1400062SS
- D1400-0620KSF
- D14000620KSF
- A062SS
- A62X2411
- 471062SS
- BN818062SS
