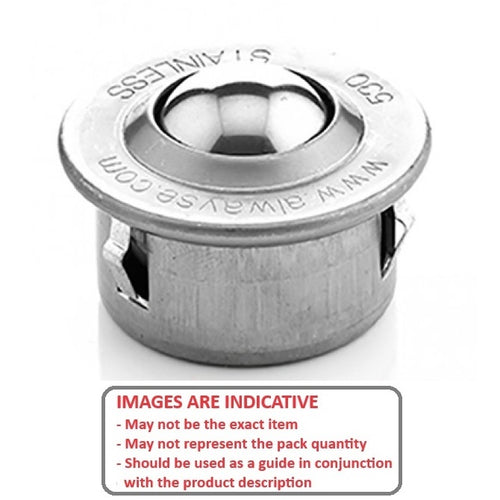

BTU0610-019-F-SS - Datasheet
MBA
Category Information
Ball Transfer Units - Flange Mount - Standard - Stainless - DeepDeep Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 610 kg

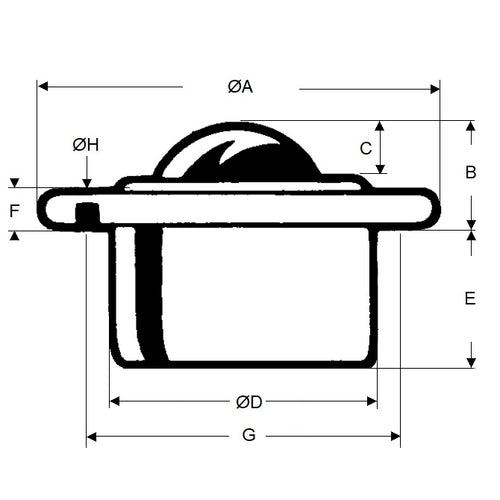

- Ball Height from Flange (B)
19
mm
+/- 0.4
(Equiv. 0.748 in.) - Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.) - Overall Height (L) 53.5 mm
- Ball Diameter 30.0 mm
- Body Height 34.5 mm
- Flange Diameter 55.0 mm
- Flange Thickness 4.0 mm
- Material Stainless Steel AISI 420C and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-704
- SKF704
