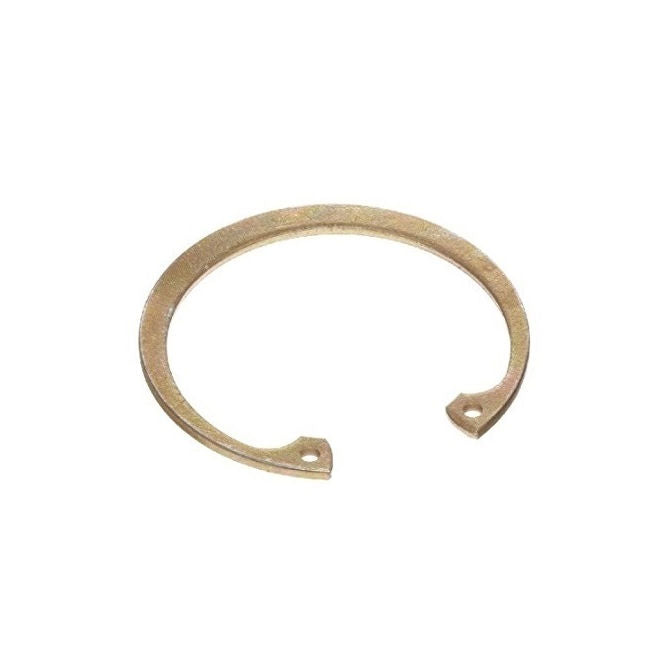

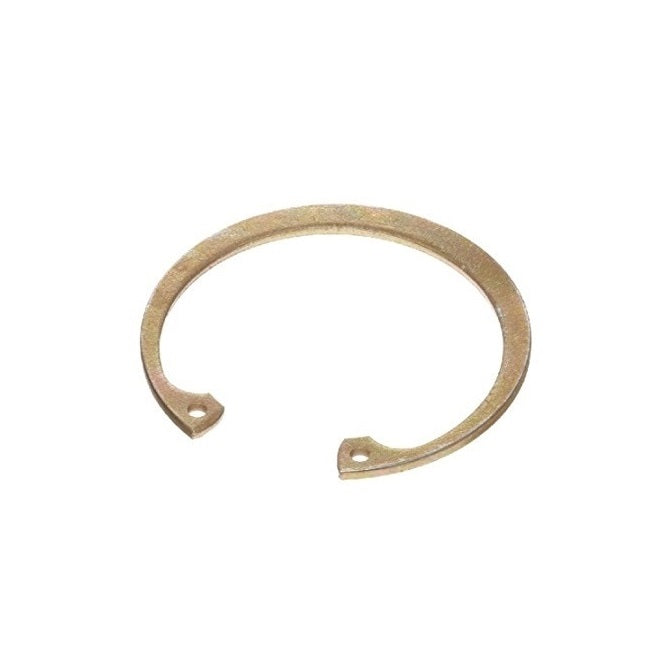

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 61.98 mm
(Equiv. 2.44 in.)
Clip Thickness (T) 1.98 mm _{+/- 0.152}
(Equiv. 0.078 in.)
Groove Dia. (Dg) 65.63 mm _{+ 0.00 / - 0.07}
(Equiv. 2.584 in.)
Approx. Loose Circlip OD (Dr) 68.63 mm + 1.02 / - 0.76
Groove Width (W) 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C) 49.78 mm
Clearance in Groove (C1) 53.59 mm
Min. Lug Diameter (h) 2.74 mm
Min. Extension (n) 5.49
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

NoCor HO-244-ZD
HO244ZD
N13000244AZD
N1300-0244AZD
