Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 61.91 mm
    (Equiv. 2.437 in.)
  • Clip Thickness (T) 1.98 mm +/- 0.152
    (Equiv. 0.078 in.)
  • Groove Dia. (Dg) 58.39 mm +/- 0.076
    (Equiv. 2.299 in.)
  • Approx. Loose Circlip ID (A) 57.28 mm
  • Groove Width (W) 2.18 mm
  • Clearance on Shaft (C1) 74.17 mm
  • Clearance in Groove (C1) 70.61 mm
  • Min. Lug Diameter (h) 3.12 mm
  • Min. Extension (n) 5.51
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91590A166
  • NoCor SH-243-SS
  • SH243SS
  • N1400-0243BDS
  • N14000243BDS
View full details

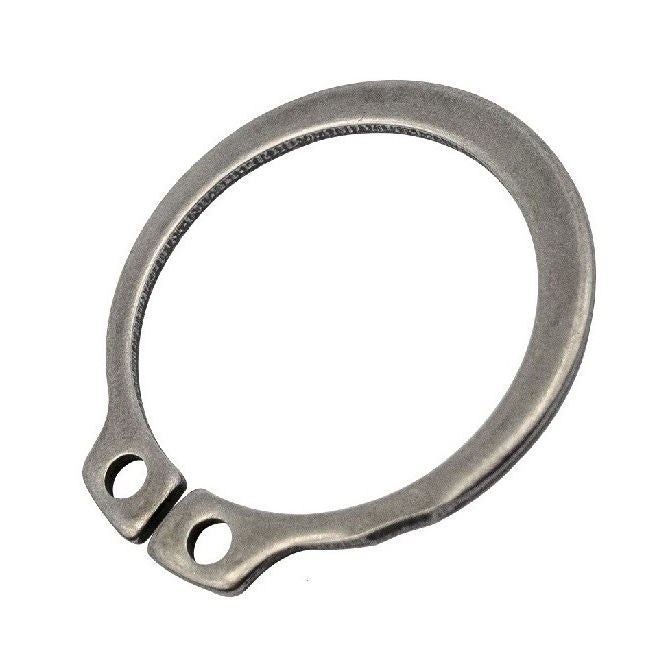

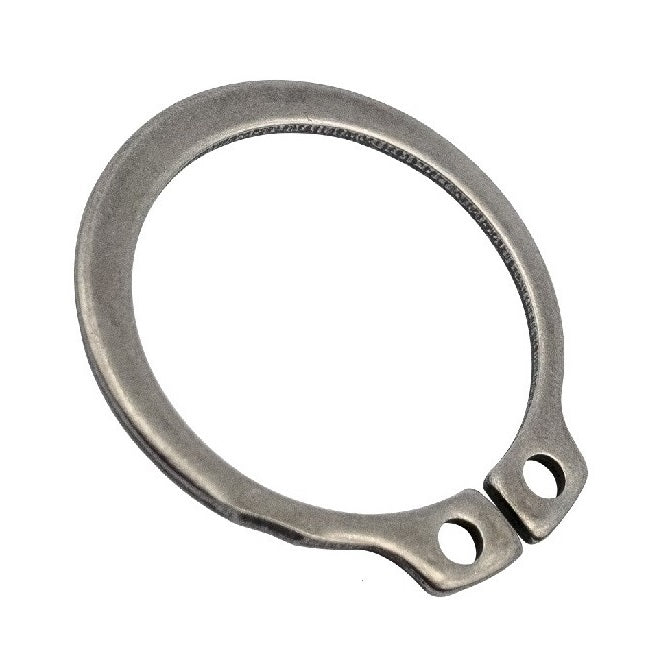

CCE-06191-S15DiagramCCE-06191-S15Image
