Category Information

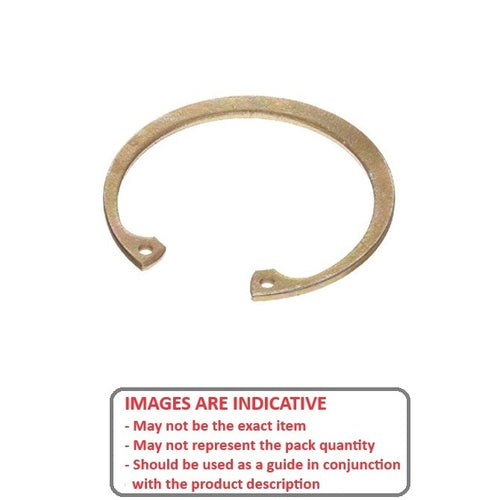

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 60.33 mm
(Equiv. 2.375 in.)
Clip Thickness (T) 1.98 mm _{+/- 0.152}
(Equiv. 0.078 in.)
Groove Dia. (Dg) 63.93 mm _{+ 0.00 / - 0.07}
(Equiv. 2.517 in.)
Approx. Loose Circlip OD (Dr) 66.80 mm + 1.02 / - 0.76
Groove Width (W) 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C) 48.26 mm
Clearance in Groove (C1) 51.82 mm
Min. Lug Diameter (h) 2.31 mm
Min. Extension (n) 5.41
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

98409A251
NoCor HO-237-ZD
HO237ZD
N1300-0237AZD
N13000237AZD
