PLBP-060-070-PP-009 - Datasheet
MBA
Category Information

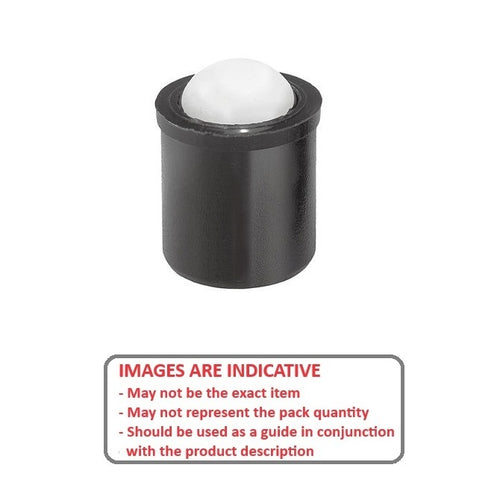

Plungers - Ball Push Fit - Plastic Body - Plastic BallPlastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.
Product Data
- Body Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
7.00
mm
(Equiv. 0.276 in.) - Initial Pressure (F1) 5.00 N
- Final Pressure (F2) 9.00 N
- Ball Diameter (D1) 5.00 mm
- Ball Height (H) 1.60 mm
- Shoulder Diameter (S) 6.5 mm
- 6.500
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-PFPPN6-10P
- CPFPPN610P
