BLP-064-0826-CZ - Datasheet
MBA
Category Information

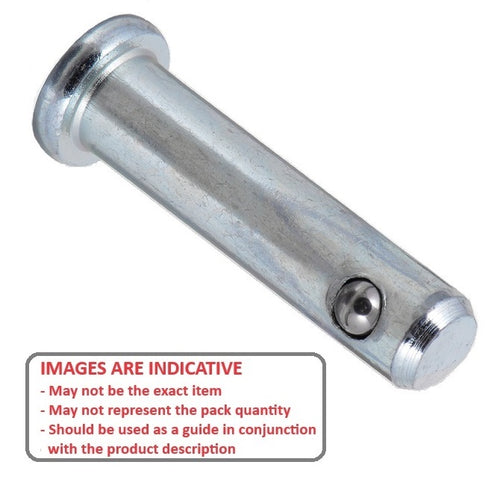

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Self locking and reusable with a spring loaded ball lock
- Zinc plated low carbon steel with stainless steel ball
Product Data

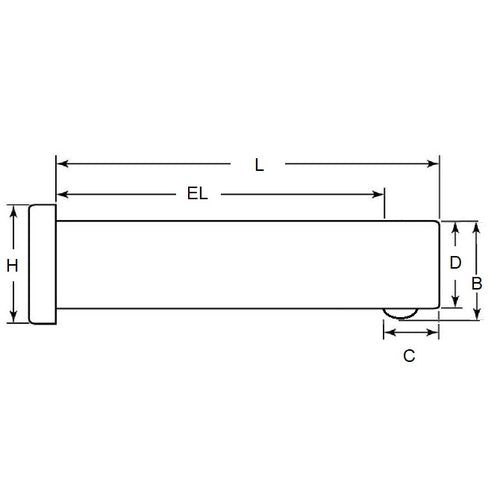

- Nominal Pin Diameter (A)
:
6.35
mm
- 0.05 / - 0.18
(Equiv. 0.25 in.) - Grip Length (EL)
82.55
mm
+ 0.51 / - 0.00
(Equiv. 3.25 in.) - Nom. Length (L)
88.90
mm
+ 0.51 / - 0.00
(Equiv. 3.5 in.) - Locking Ball to End (C) 6.35 mm
- Open Ball Distance (B) 0.51 to 0.64 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor CLPCZ-0250-3500
- CLPCZ02503500
- BLP0640826Z
