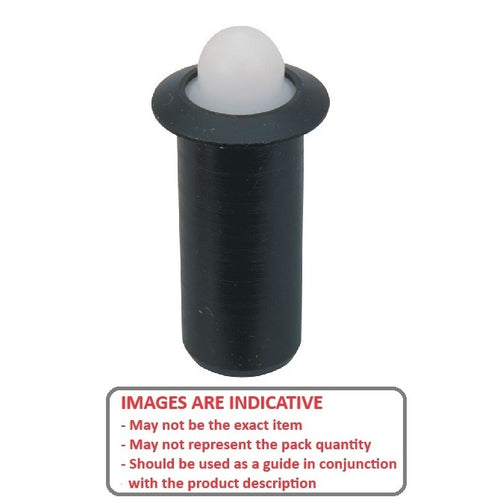

PLSP-064-122-AC-013 - Datasheet

MBA

Product Data

• Body Diameter (A) : 6.35 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.25 in.)
• Body Length (B) 12.2 mm
  (Equiv. 0.48 in.)
• Initial Pressure (F1) 6.7 N
• Final Pressure (F2) 13.4 N
• Tip Diameter (D1) 4.3 mm
• Tip Length (C) 3.2 mm
• Drive Push Fit
• Material Steel Body with Acetal

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8683A25
• PFP-88
• PFP88
