LYP-Q2-064-057-S4 - Datasheet
MBA
Category Information

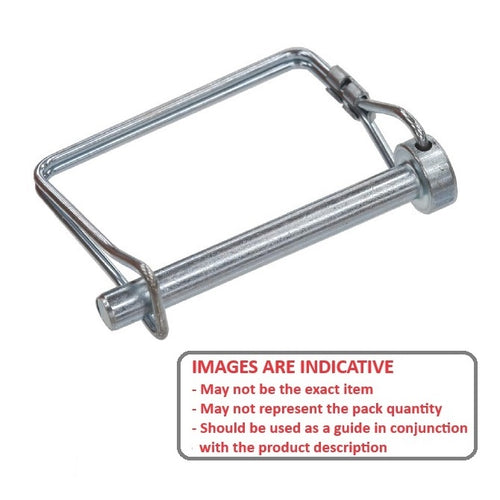

Pins - Wire Lock Lynch - Double Wire - Square - Stainless SteelStainless Steel Square Double Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

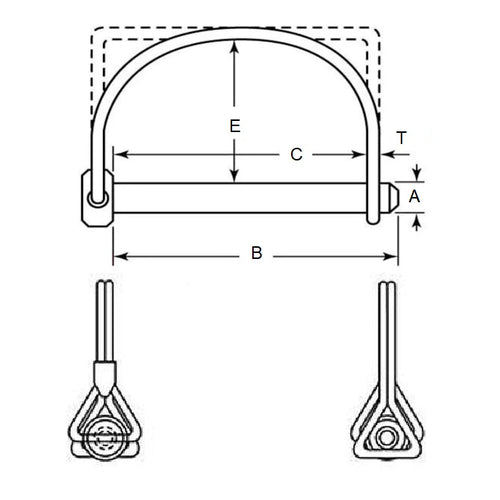

- Pin Diameter (A)
:
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.) - Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Clearance To Wire (E) 41.3 mm
- Pin Length (B) 63.5 mm
- Weight Per Piece 39 g
- Finish Passivated
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNAPS-250-2250S
- SNAPS2502250S
