LYP-CLK-064-032-CZ - Datasheet
MBA
Category Information

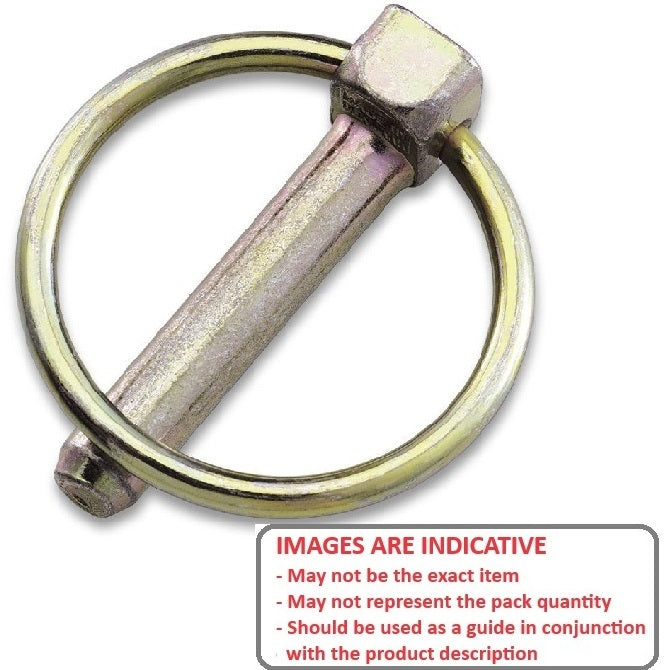

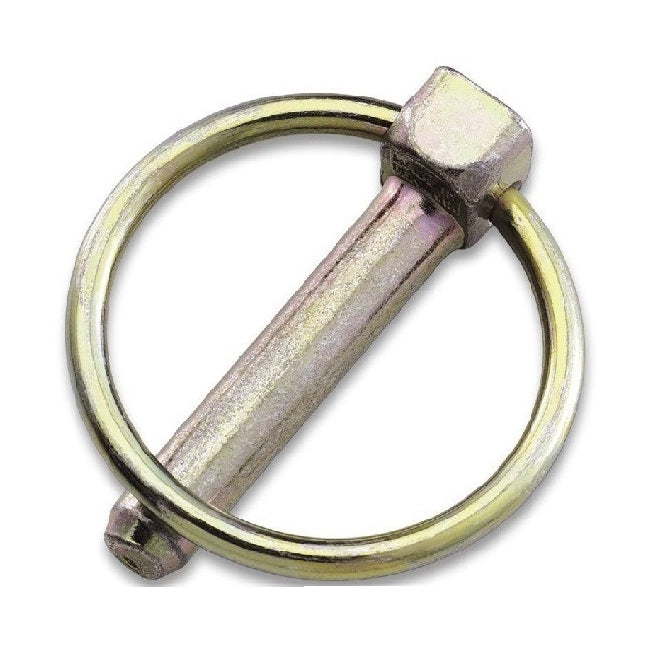

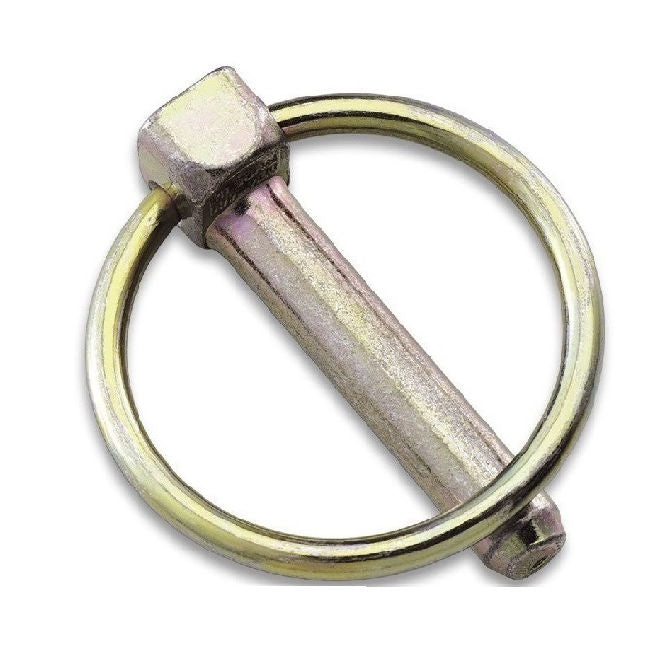

Pins - Clik - Carbon SteelCarbon Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Features an “over center” ring loop attached to the head which snaps down hard to hold the fastener in place.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
- Zinc plated.

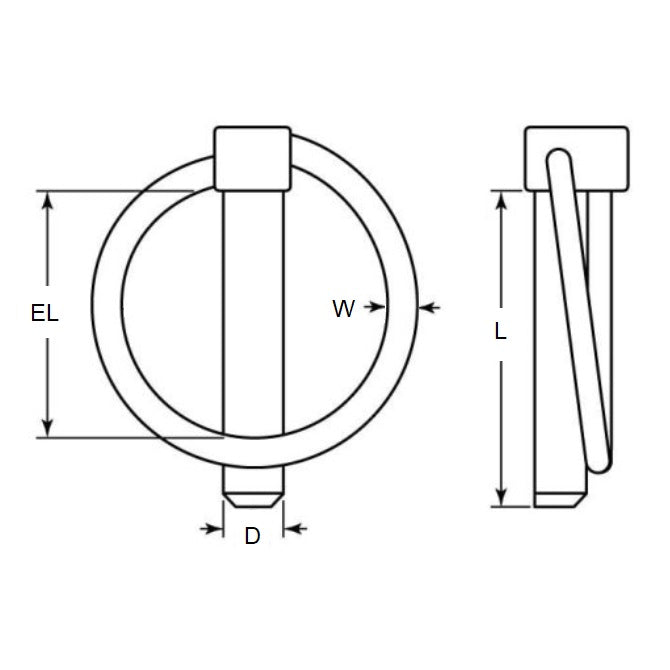

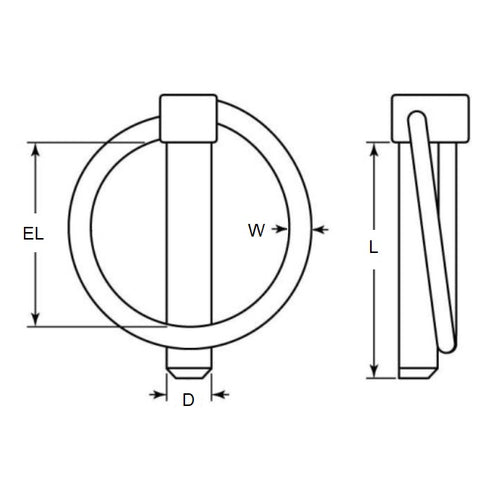

Product Data
- Pin Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Grip Length
31.8
mm
(Equiv. 1.252 in.) - Wire Thickness
3.0
mm
(Equiv. 0.118 in.) - Finish Zinc Plated
- Material Carbon Steel Zinc Plated Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- 90170A212
- CLP581
- CLP-581
