CS-0635-2540-11-M - Datasheet
MBA
Category Information

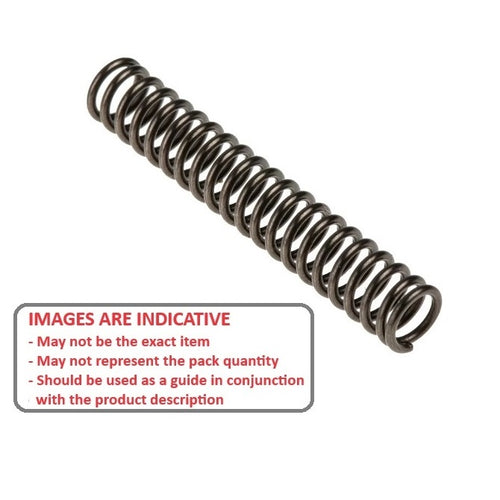

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data

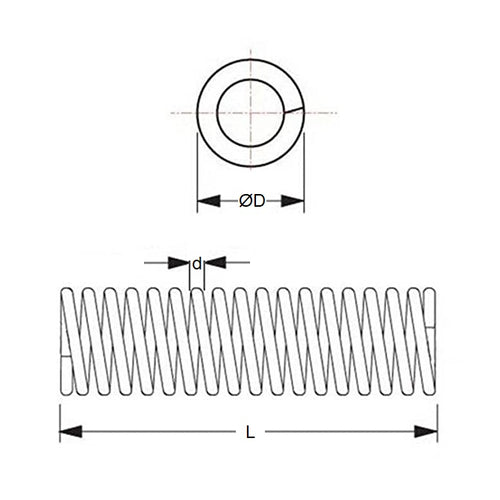

- Spring OD (D0)
:
6.35
mm
+/- 0.127
(Equiv. 0.25 in.) - Free Length (L0)
254.0
mm
+/- 7.62
(Equiv. 10 in.) - Wire Diameter (d)
1.07
mm
+/- 0.018
(Equiv. 0.042 in.) - Approx. ID 4.2 mm
- End Type Open
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- S-12
- S12
