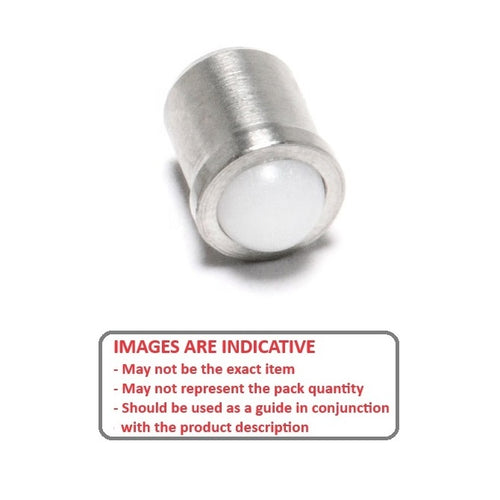

PLSP-064-122-AS-027 - Datasheet

MBA

Product Data

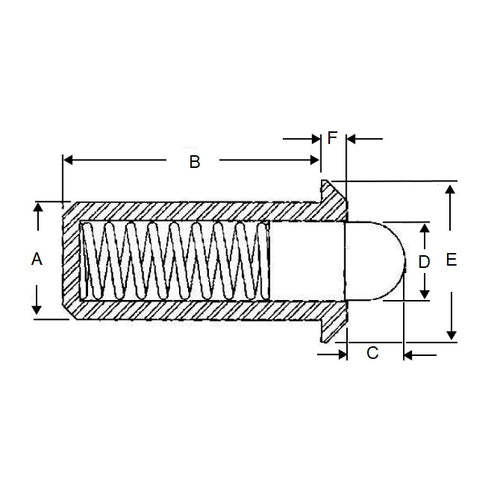

• Body Diameter (A) : 6.35 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.25 in.)
• Body Length (B) 12.2 mm
  (Equiv. 0.48 in.)
• Initial Pressure (F1) 11.1 N
• Final Pressure (F2) 26.7 N
• Tip Diameter (D1) 4.3 mm
• Tip Length (C) 3.2 mm
• Drive Push Fit
• Material Stainless Steel Body with Acetal

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
