BLP-064-0762-BT-S17 - Datasheet
MBA
Category Information

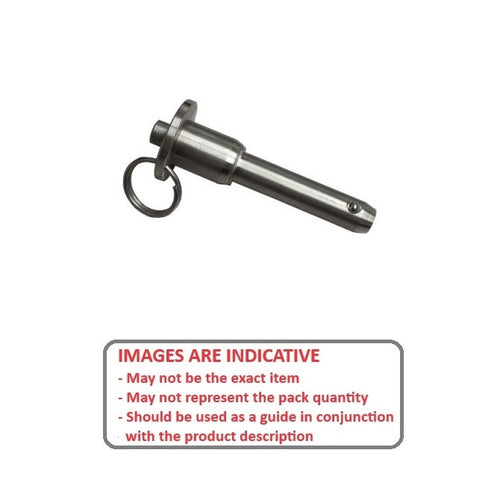

Pins - Ball Lock - Button Handle - Industrial Stainless SteelIndustrial Stainless Steel Button Handle Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

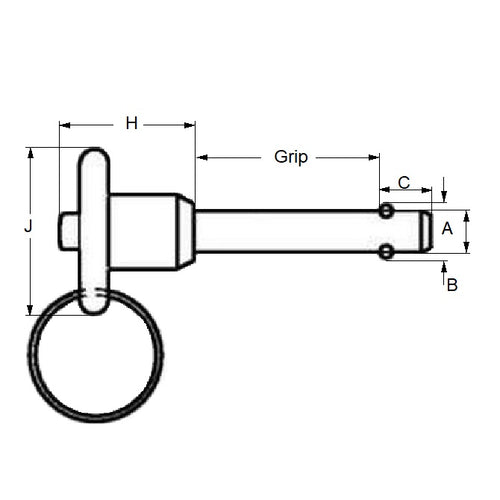

- Nominal Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Grip Length (B)
76.20
mm
(Equiv. 3 in.) - Pin Material Grade 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C) 7.36 mm
- Open Ball Distance (B) 7.34 mm
- Ring Diameter (F) 26.92 mm
- Handle Length (R) 19.81 mm
- Pull Out Strength 104.00 Kg
- Calc. Double Shear Strength 4163 Kg
- Max. Diameter 6.31 mm
- Min. Diameter 6.27 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- 92851A135
- BLBS040A
- BLBS-040
- BLBS-040A
