BLP-064-0635-BT-S4 - Datasheet
MBA
Category Information

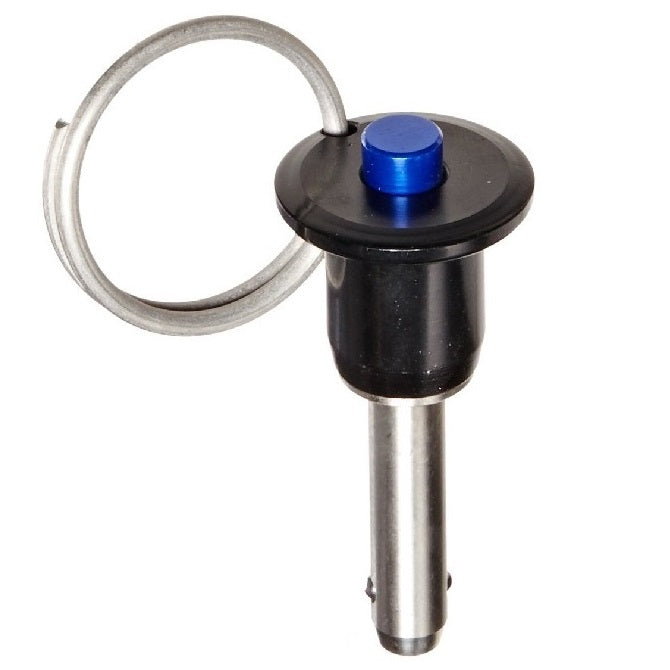

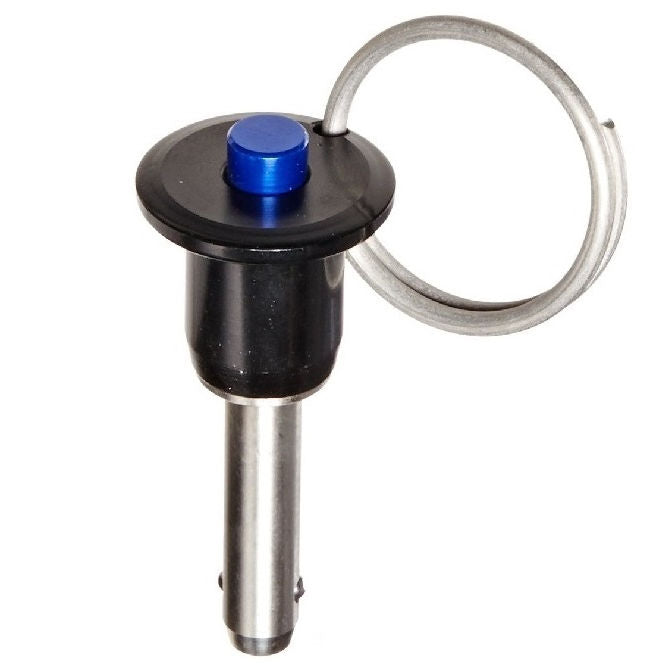

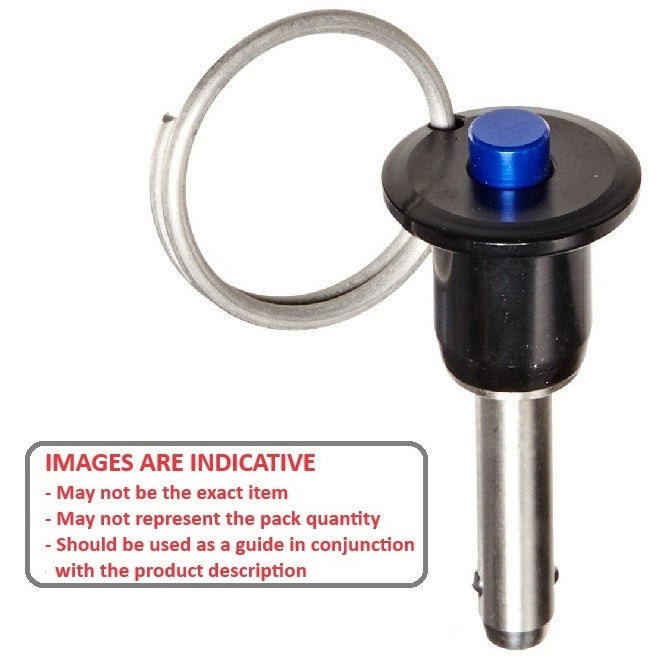

Pins - Ball Lock - Button Handle - Commercial 304 StainlessCommercial 304 Stainless Button Handle Ball Lock Pins. Quick release. Commercial pins provide strong locking and are perfect for less demanding applications where fastening and locating are needed.
- An expanded range may be available on special order. Please enquire.
- Economical. Positive lock detent pins.
- Aluminium handles.
- 360 Brass Buttons
- 304 Stainless Steel Shank and balls
- Use industrial grade T handled pins when higher double shear strength is required
Product Data

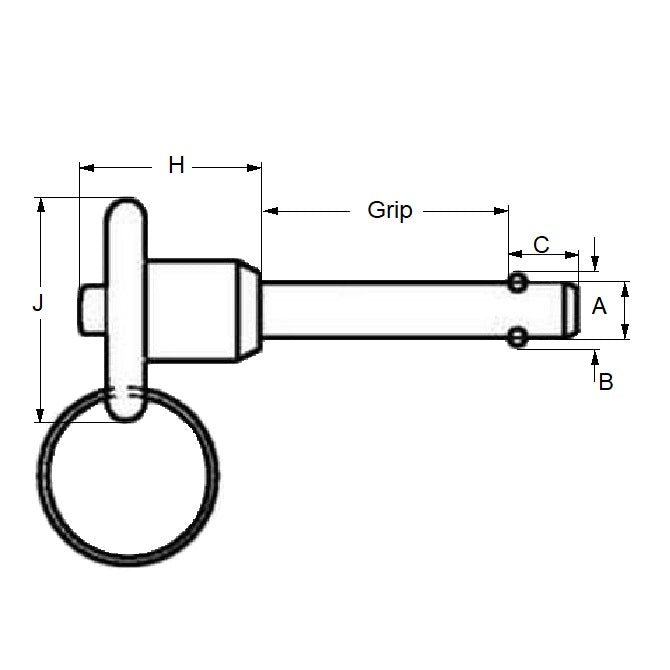

- Nominal Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Grip Length (B)
63.50
mm
(Equiv. 2.5 in.) - Pin Material Grade 304 Stainless Steel Shank / Aluminium Handle
- Locking Ball to End (C) 7.37 mm
- Open Ball Distance (B) 7.34 mm
- Max. Handle Height (H) 22.61 mm
- Max. Handle Diameter (J) 20.32 mm
- Min. Handle Diameter (J) 18.29 mm
- Pull Out Strength 80.00 Kg
- Calc. Double Shear Strength 980 Kg
- Material Stainless Steel 304 with Aluminium Handle
