BLP-064-0635-DR-S17 - Datasheet
MBA
Category Information

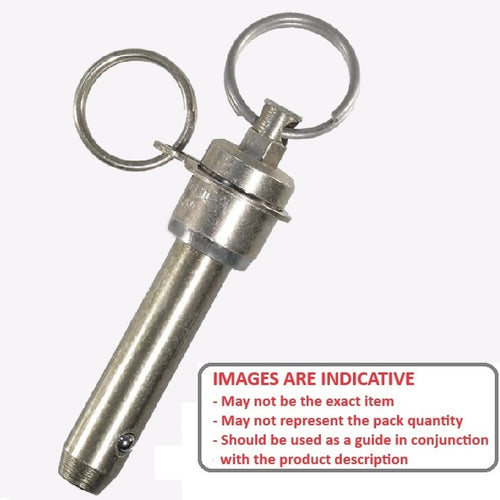

Pins - Ball Lock - Double Acting - Ring Handle Stainless SteelRing Handle Stainless Steel Double Acting Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Self locking and positive locking. All components made from stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Handles
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data
- Nominal Diameter
:
6.35
mm

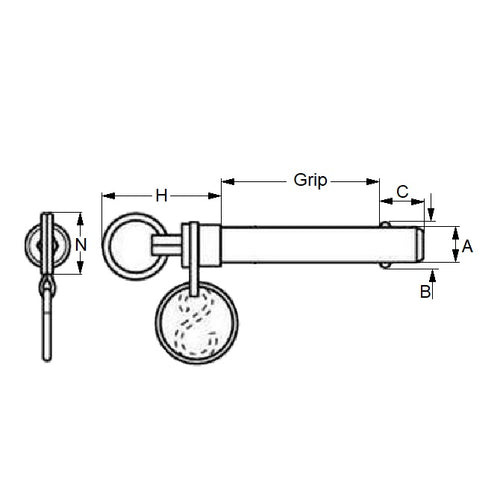

(Equiv. 0.25 in.) - Grip Length (B)
63.50
mm
(Equiv. 2.5 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 7.37 mm
- Open Ball Distance (B) 7.34 mm
- Ring Height (H) 49.40 mm
- Head Width (N) 28.58 mm
- Pull Out Strength 104 Kg
- Max. Diameter 6.31 mm
- Min. Diameter 6.27 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- DARS035A
- DARS-035A
