BLP-064-0508-TI-S17 - Datasheet
MBA
Category Information

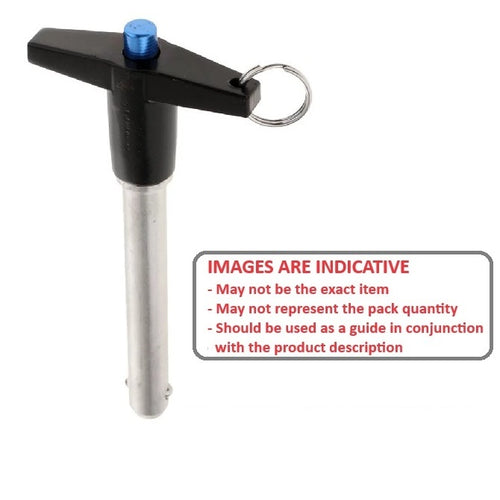

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless SteelStainless Steel Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Body and spindle 17-4 PH stainless steel. Ring and spring 17-7 MO stainless steel. Handle and collar are 300 grade stainless. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls

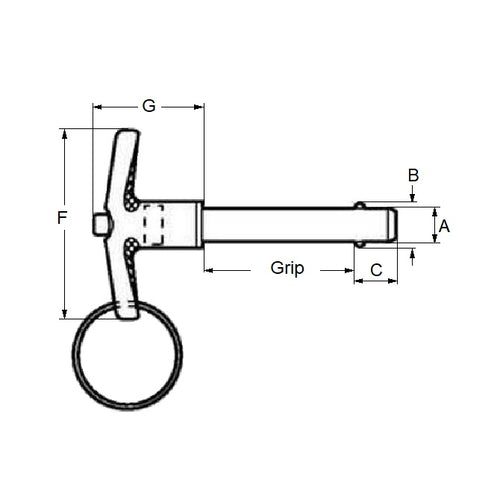

Product Data
- Nominal Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 7.36 mm
- Open Ball Distance (B) 7.34 mm
- Handle Width (F) 46.10 mm
- Handle Length (G) 32.25 mm
- Pull Out Strength 102.00 Kg
- Calc. Double Shear Strength 4100 Kg
- Max. Diameter 6.31 mm
- Min. Diameter 6.27 mm
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 90293A114
- NoCor PLTS-0250-2000
- PLTS02502000
- BLTS030
- BLTS-030
- BLTS030A
- BLTS-030A
