CNG-00635-09-420-2 - Datasheet
MBA
Category Information

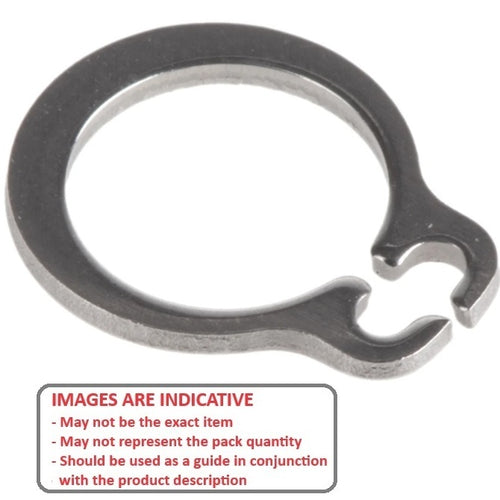

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data

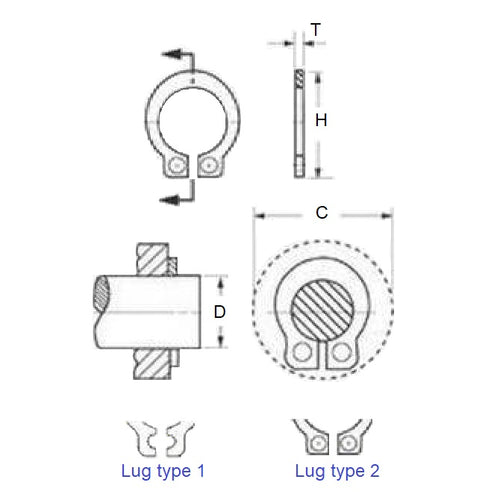

- Shaft Diameter (Ds)
:
6.35
mm
+/- 0.05
(Equiv. 0.25 in.) - Clip Thickness (T)
0.89
mm
(Equiv. 0.035 in.) - Approx. Loose Circlip ID (A) 6.00 mm
- Assemb. Clearance on Shaft (C) 12.45
- Allowable Load 93 N
- Lug Type 2 (Closed) mm
- Tool PRS-E047-X
- Material Stainless Steel AISI 420C
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-025-SS
- SHF025SS
