IN-TP-035C-08-WSL - Datasheet
MBA
Category Information

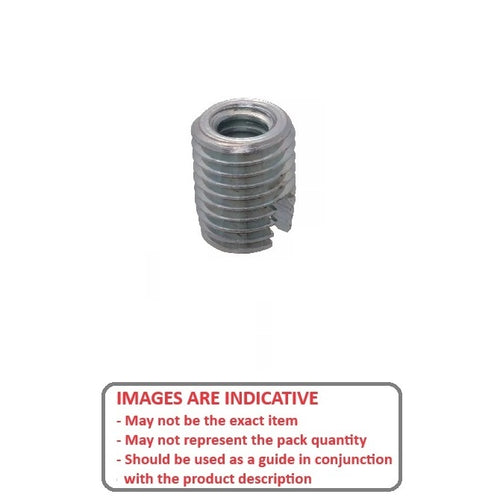

Inserts - Self Tapping - For Wood - Slotted Drive - StandardStandard Slotted Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with soft plastics, hard and soft wood, particle board
Product Data
- Internal Thread : 6-32 UNC (3.5mm)
- Rec. Hole Diameter
4.60
mm

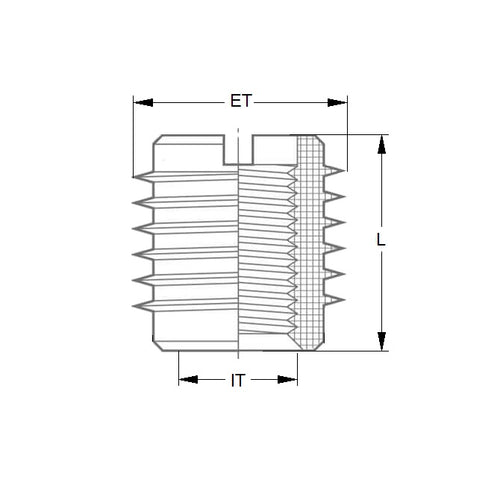

(Equiv. 0.181 in.) - Length (L)
8.0
mm
(Equiv. 0.315 in.) - Outside Diameter (B) 6.502 mm
- Required Hole Depth 10.008 mm
- Hardwood and Plastic Hole Size 4.70 mm
- Material to be used in Hard and Soft Woods, Particle board, Soft Plastics
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- INTP0350C080WS
