PLST-035C-127-C-007 - Datasheet
MBA
Category Information

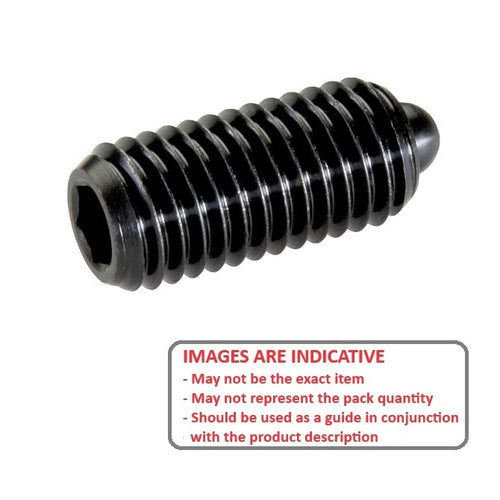

Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

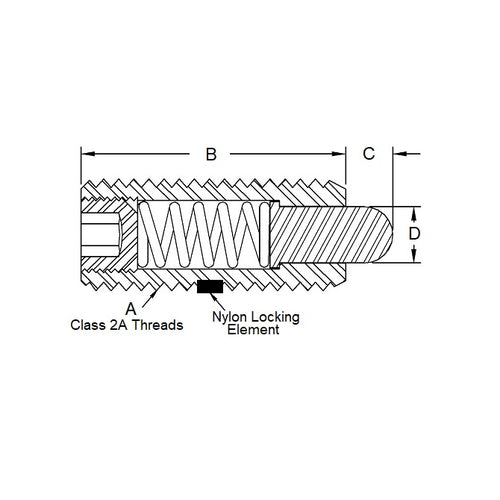

- Thread Size (A) : 6-32 UNC (3.5mm)
- Thread Length (B)
12.7
mm
(Equiv. 0.5 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 7.1 N
- Tip Diameter (D) 1.1 mm
- Tip Length 1.6 mm
- Body Length (B) 12.7 mm
- Drive 1.27mm Hex
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- PH48B
- PH-48B
