PLST-035C-135-S3-007 - Datasheet
MBA
Category Information

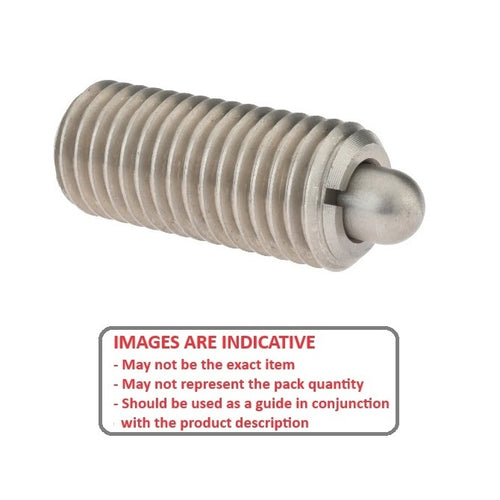

Plungers - Spring - No Handle - Stainless - Stainless NoseStainless Nose Stainless No Handle Spring Plungers. 303 Stainless Steel.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

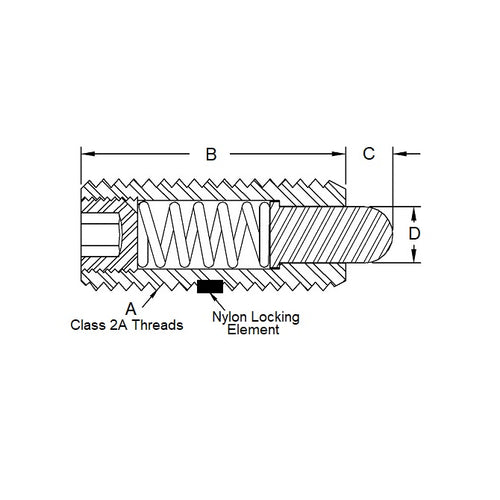

- Thread Size (A) : 6-32 UNC (3.5mm)
- Thread Length (B)
13.5
mm
(Equiv. 0.531 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 6.7 N
- Tip Diameter (D) 1.1 mm
- Tip Length (C) 1.6 mm
- Body Length (B) 13.5 mm
- Drive Hex
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 8476A41
- STS1
- STS-1
