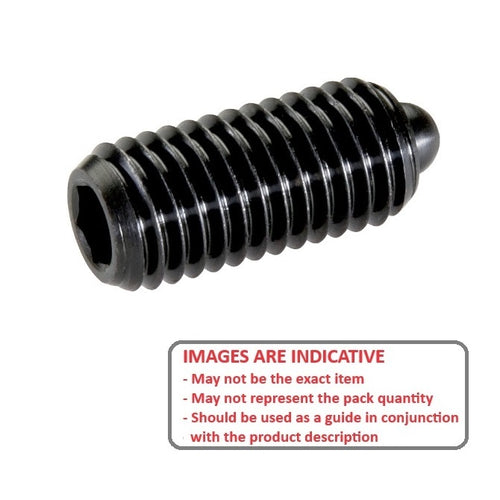

PLST-035C-095-C-016 - Datasheet
MBA
Category Information
Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 6-32 UNC (3.5mm)
- Thread Length (B)
9.5
mm
(Equiv. 0.374 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 15.6 N
- Tip Diameter (D) 1.2 mm
- Tip Length 1.6 mm
- Body Length (B) 9.5 mm
- Drive Slotted
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- JP-1
- JP1
