IN-RIV-035C-028-R - Datasheet

MBA

Category Information

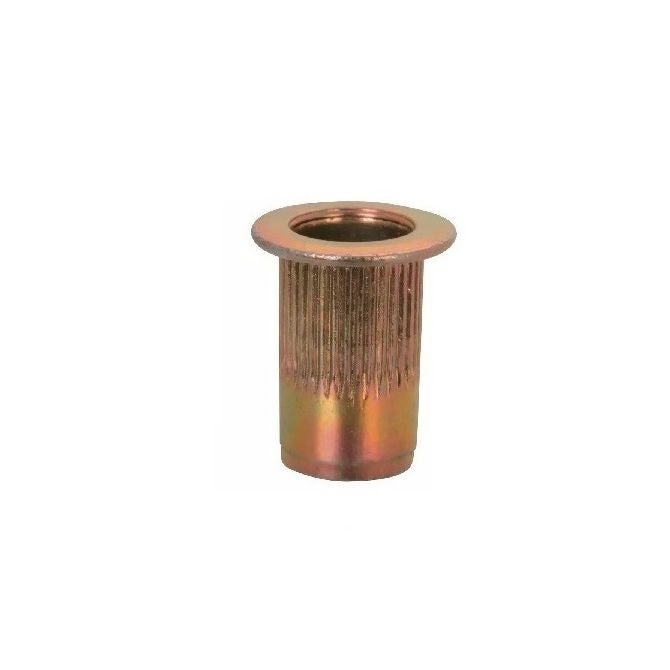

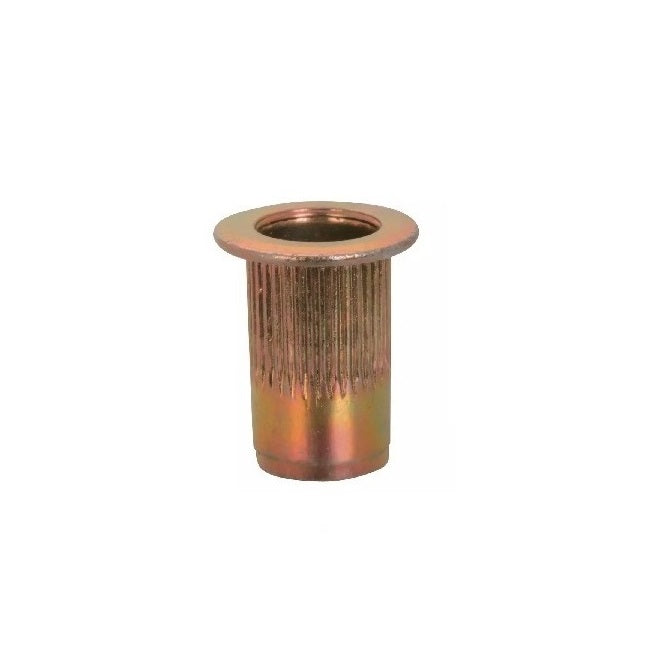

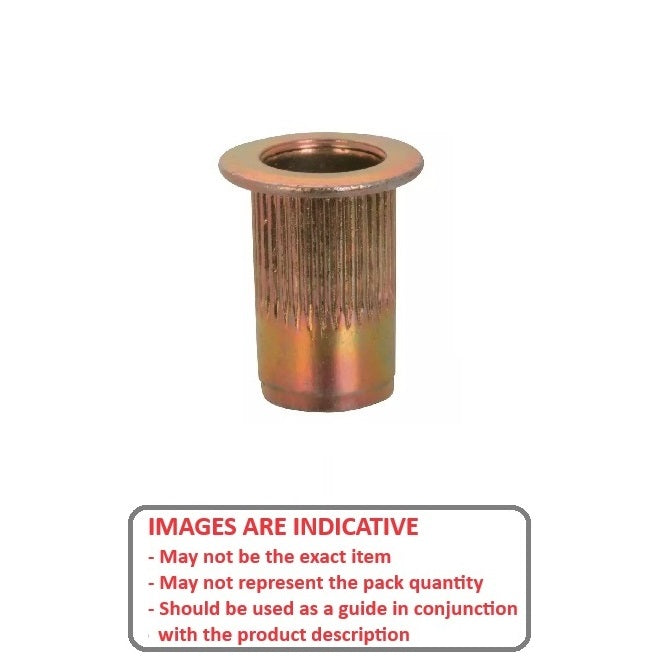

Inserts - Rivet Nuts - Klik - Ribbed

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : 6-32 UNC (3.5mm)
  • Drill Hole Size 6.75 mm
    (Equiv. 0.266 in.)
  • Grip Range 0.50 - 2.83 mm
    (Equiv. 0.02 in.)

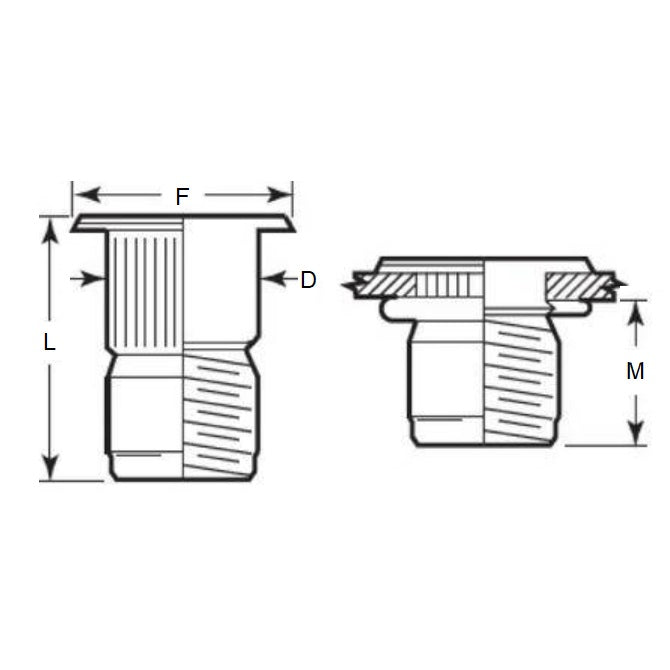

  • Body Diameter (D) 6.73 mm
  • Flange Diameter (F) 9.52 mm
  • L 10.998 mm
  • M 6.985 mm
  • 0.50 - 2.83
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95105A111
  • ALC47310
  • ALC-47310
