CS-0610-0254-10-M-C - Datasheet

MBA

Category Information

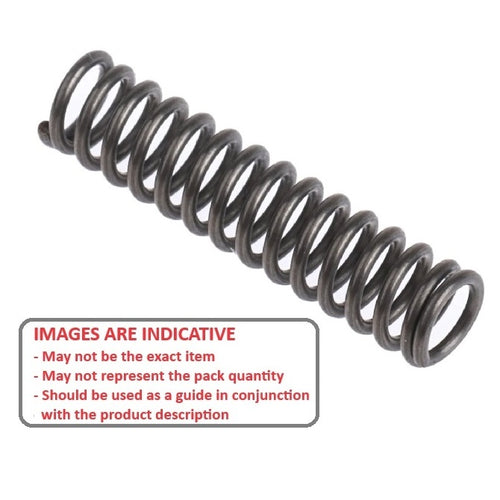

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 6.10 mm +/- 0.127
    (Equiv. 0.24 in.)
  • Free Length (L0) 25.4 mm +/- 0.64
    (Equiv. 1 in.)
  • Wire Diameter (d) 1.04 mm +/- 0.018
    (Equiv. 0.041 in.)
  • Rate (P/f) 7.0 N/mm
  • Approx. ID 4.0 mm
  • End Type Closed
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • ASI C0240-039-1000
  • C02400391000
  • S-815
  • S-830
  • S830
