Miniature Bearings Australia
CCE-00500-S15 - Datasheet
MBA
Category Information

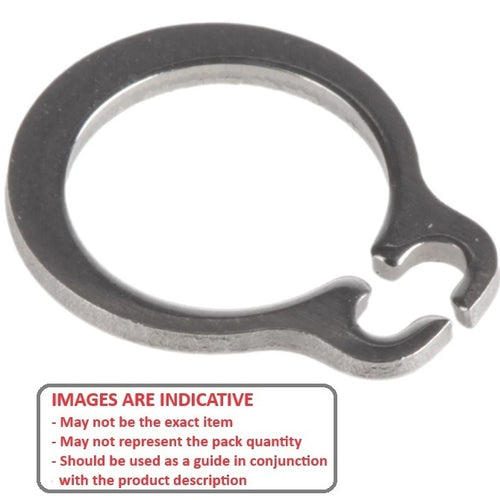

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
5.00
mm
(Equiv. 0.197 in.) - Clip Thickness (T)
0.60
mm
+ 0.00 / - 0.04
(Equiv. 0.024 in.) - Groove Dia. (Dg)
4.78
mm
+ 0.00 / - 0.05
(Equiv. 0.188 in.) - Approx. Loose Circlip ID (A) 4.70 mm
- Groove Width (W) 0.70 mm
- Clearance on Shaft (C1) 10.30 mm
- Clearance in Groove (C1) 9.80 mm
- Min. Lug Diameter (h) 1.00 mm
- Min. Extension (n) 0.30
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-005-SS
- 90967A109
- Seeger A-005-SS
- Seeger A5K500-BLS
- Seeger A5X0.6-411
- Seeger A5X0.6SS
- Bossard BN818-005-SS
- Waldes D1400-005-SS
- NoCor DSH-005-SS
- Rotor Clip DSH-005-SS
- DSH005SS
- 14000050KSF
- 1400-0050KSF
- D14000050KSF
- D1400-0050KSF
- D1400005SS
- A005SS
- A5K500BLS
- A5X06411
- 471005SS
- BN818005SS
