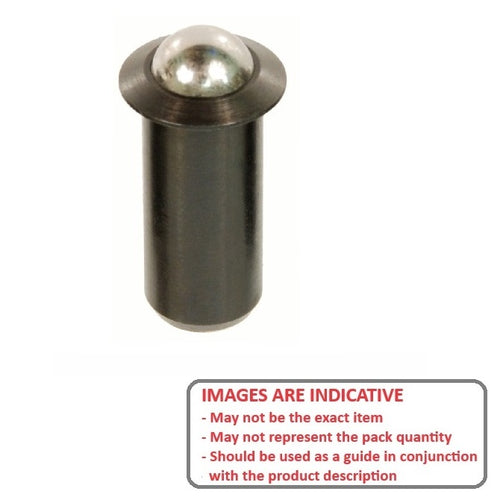

PLBP-050-060-PS-007 - Datasheet

MBA

Product Data

• Body Diameter (D) : 5.00 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.197 in.)
• Length (L) 6.0 mm
  (Equiv. 0.236 in.)
• Initial Pressure (F1) 4.0 N
• Final Pressure (F2) 7.0 N
• Ball Diameter (D1) 4.0 mm
• Ball Height (H) 1.0 mm
• Shoulder Diameter (S) 5.6 mm
• 5.6
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-PFPSN5-20P
• PFP-15
• PFP15
• CPFPSN520P
