GE-00500-01300-W300 - Datasheet
MBA
Category Information

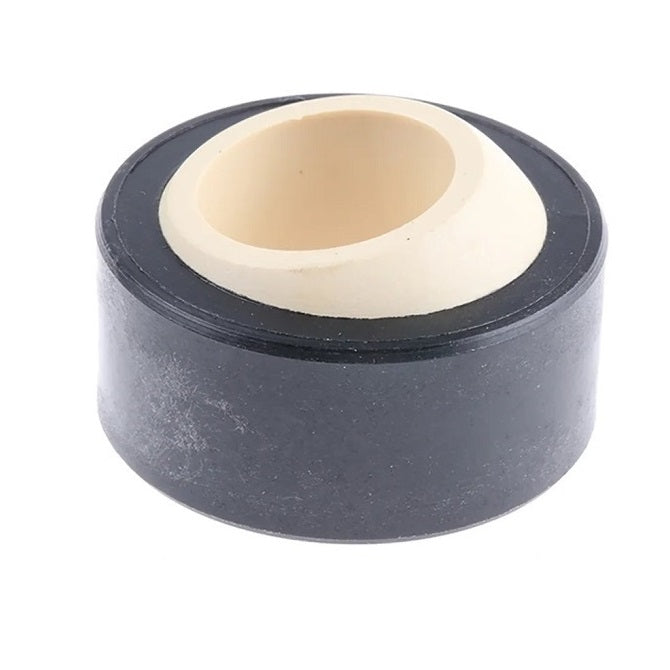

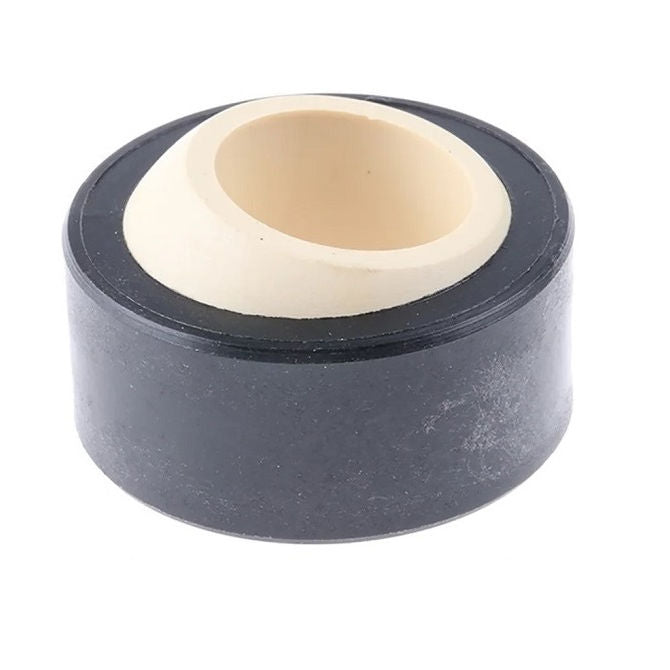

Bushings - Spherical - PlasticPlastic Spherical Bushings. Plastic spherical plain bearings. Also known as ball bushings.
- Ball Material W300. Housing Iglidur G.
- Maintenance Free. Self lubricating.
- Compensates for axial loads and misalignment.
- Corrosion resistant.
- High vibration dampening capacity.
Product Data
- Bore (d1)
:
5.000
mm
(Equiv. 0.197 in.) - OD (d2)
13.000
mm
(Equiv. 0.512 in.) - Width (B)
8.000
mm
(Equiv. 0.315 in.) - Outer Width (C) 6.00 mm
- Max Pivot angle 30 Deg.
- Max Torque 5.0 Nm
- Max Static Comp. str. (Radial) 1250 N
- Max Static Comp. str. (Axial) 500 N
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus KGLM-05
- KGLM05
- I580
- I-580
