Category Information

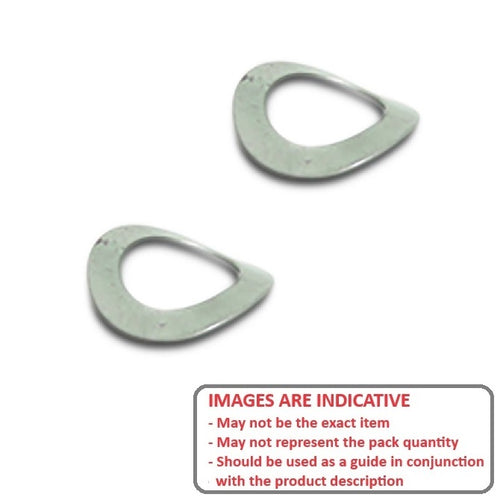

Washers - Spring - Curved - Carbon SteelCarbon Steel Curved Spring Washers. Carbon steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

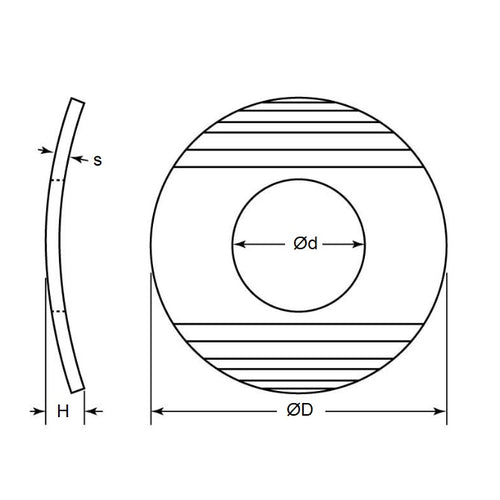

- Nominal Inside Diameter (B)
:
5.00
mm
+ 0.300 / - 0
(Equiv. 0.197 in.) - Nominal Outside Diameter (A)
10.00
mm
+/- 0.45
(Equiv. 0.394 in.) - Nom. Height (C)
0.90
mm
(Equiv. 0.035 in.) - Thickness (D) 0.50 mm
- Info Zinc Plated
- Type Curved DIN 137 Type A
- Nominal Screw Size M5, 10-24, 10-32, 3/16
- Actual ID (Ref) 5.3 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MD0137MQA100
