W0050-LK-010-020-D-S2 - Datasheet
MBA
Category Information

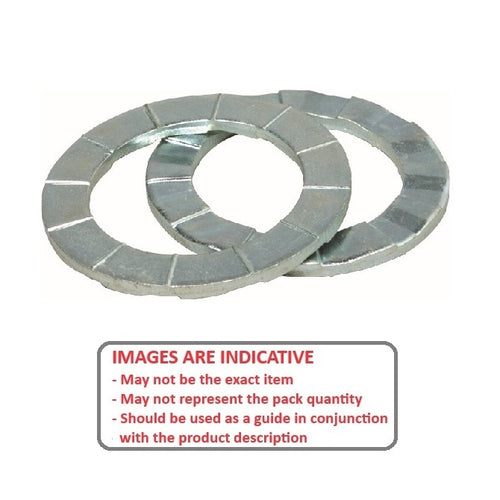

Washers - Disk LockDisk Lock Washers. Stainless steel selection including Grade A2, 302,316, 18-8 and more.
- Disc lock washers offer resistance to self loosening during vibration & fluctuating loads.
- They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
- Supplied in pairs. Assembled in pairs, cam face to cam face. Also see Nord Lock and Lockrite washers This category will be discontinued when the remaining items are sold.
- Maximum Working Temp: +430 deg C.
- DISC-LOCK© has outperformed all other types of loose, washered, threaded or pinned systems in a wide range of high stress, corrosive, and vibration sensitive applications.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

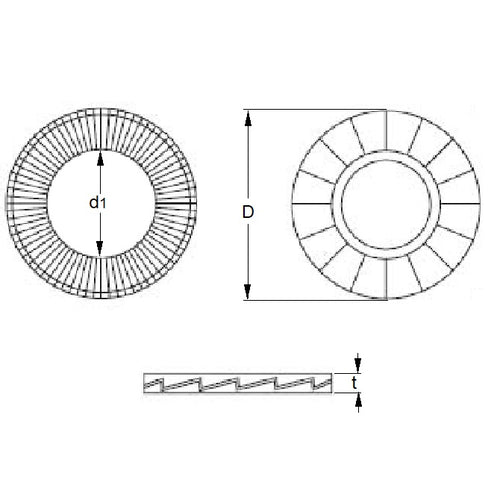

- Nominal Inside Diameter
:
5
mm
(Equiv. 0.197 in.) - Nominal OD
10.18
mm
(Equiv. 0.401 in.) - Thickness
2.03
mm
(Equiv. 0.08 in.) - To Suit Thread Size M5 (5x0.8mm)
- No. of Cams 6.00
- Actual ID (Ref) 5.15 mm
- Material Stainless Steel 302 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- DISM5
- DIS-M5
