CCI-05874-CZY - Datasheet
MBA
Category Information

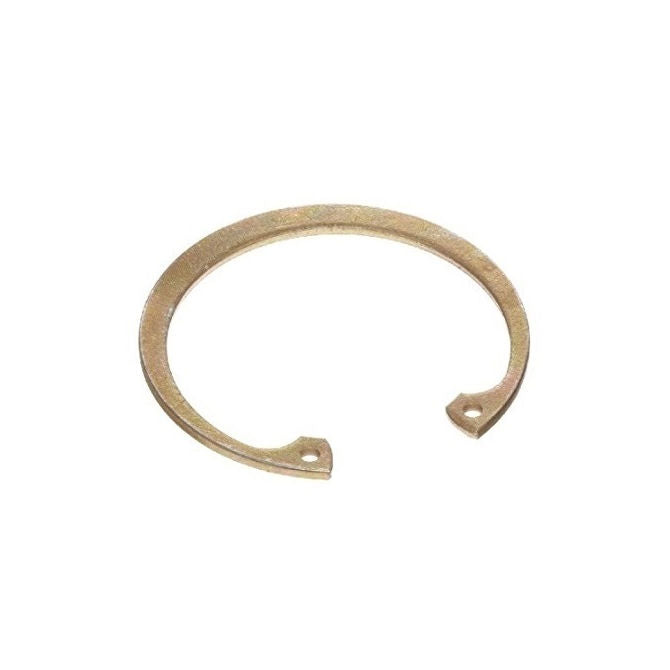

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
58.74
mm
(Equiv. 2.313 in.) - Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.) - Groove Dia. (Dg)
62.23
mm
+ 0.00 / - 0.07
(Equiv. 2.45 in.) - Approx. Loose Circlip OD (Dr) 65.02 mm + 1.02 / - 0.76
- Groove Width (W) 2.18 mm + 0.13 / - 0.00
- Clearance in Bore (C) 46.74 mm
- Clearance in Groove (C1) 50.29 mm
- Min. Lug Diameter (h) 2.31 mm
- Min. Extension (n) 5.26
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
