BTU0060-010-F-SS - Datasheet
MBA
Category Information

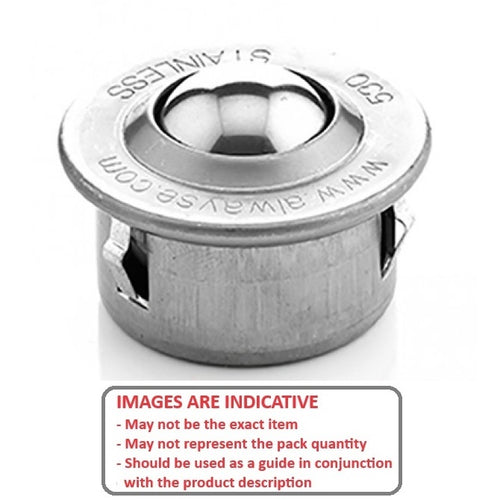

Ball Transfer Units - Flange Mount - Standard - Stainless - DeepDeep Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 55 kg

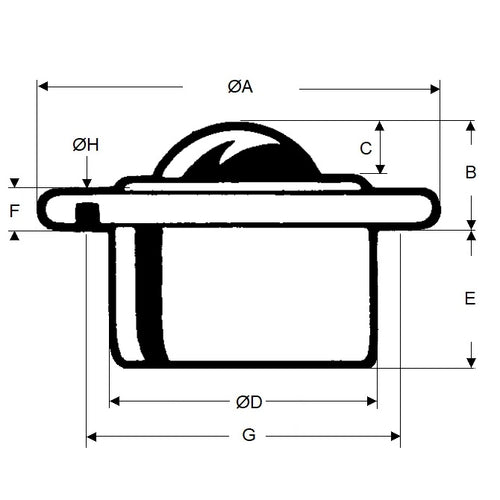

- Ball Height from Flange (B)
6.7
mm
+/- 0.2
(Equiv. 0.264 in.) - Body Diameter (D)
24
mm
+/- 0.065
(Equiv. 0.945 in.) - Overall Height (L) 21.0 mm
- Ball Diameter 15.0 mm
- Body Height 11.5 mm
- Flange Diameter 31.0 mm
- Flange Thickness 2.8 mm
- Material Stainless Steel AISI 420C and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF701
- SKF-701
