W0180-D-050-025-C - Datasheet
MBA
Category Information

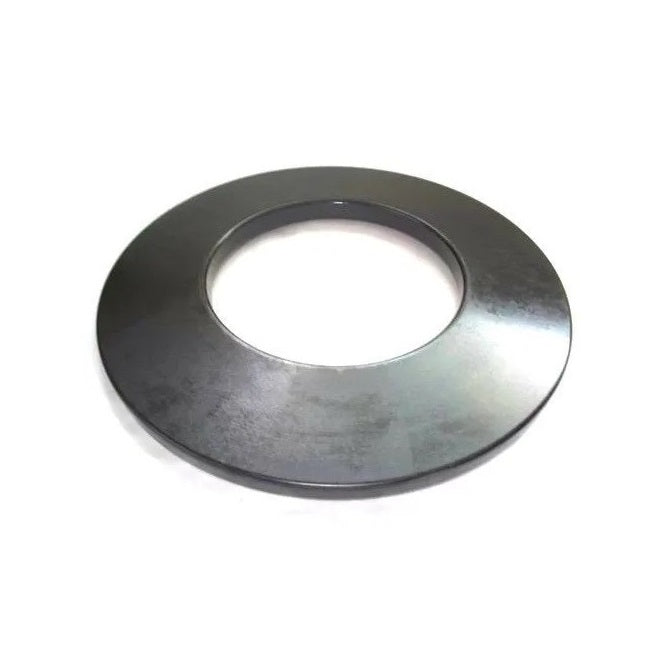

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

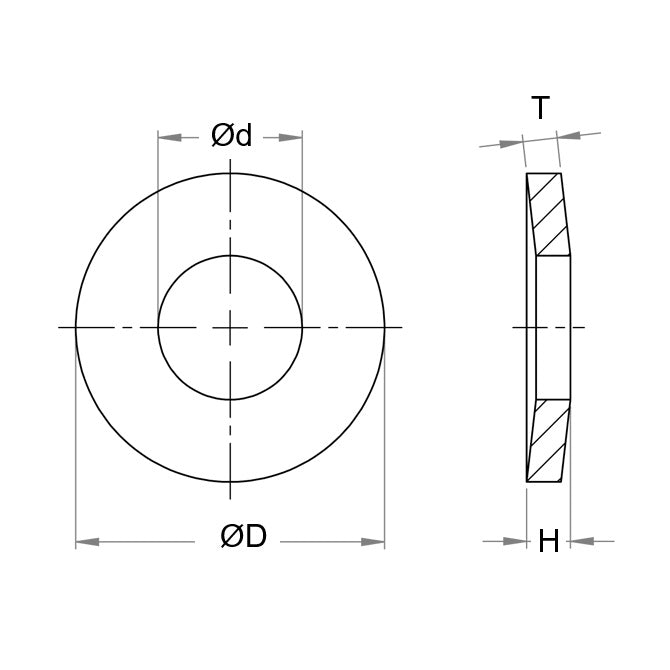

- Nominal Outside Diameter (A)
:
50.00
mm
(Equiv. 1.969 in.) - Nominal Inside Diameter (B)
18.00
mm
+ 0.30 / - 0.00
(Equiv. 0.709 in.) - Stock Thickness (C)
2.50
mm
(Equiv. 0.098 in.) - Loaded Height (L1) 2.90 mm
- Load at L1 930.0 kg
- Free Height (E) 4.10 mm
- Actual ID (Ref) 18.4 mm
- Inside Height (D) 1.60 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- S4332
